15.6″ Nexcom IPPC 1640P Industrial Panel PC

Main Features:

  • Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 cache
  • Metal housing with robust aluminum front zero bezel for harsh environment
  • 10 points P-Cap multi-touch with zero bezel flush front design

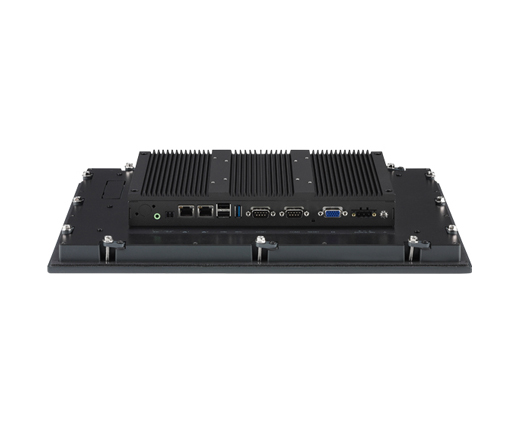

  • Dual GbE/2nd display-VGA/Line-out
  • 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
  • DDR3L 4GB/2.5” HDD bracket
  • IP66 compliant front panel
  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • Wide range power input 12~30VDC


Download Datasheet

SKU: Nexcom IPPC 1640P Category:

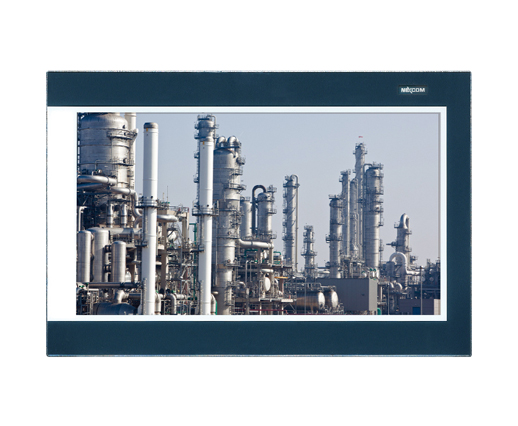

Nexcom IPPC 1640P 15.6″ Industrial Panel PC

15.6″ TFT WXGA 16:9 Heavy Industrial Panel PC with Intel® Celeron® Quad Core Processor J1900, up to 2.42GHz, Multi-Touch Screen, 4GB DDR3L, 3 x USB, 2 x COM

Nexcom 15.6” fanless panel PC IPPC 1640P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1366 x 768 (HD; WXGA) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.

Nexcom IPPC 1640P supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, IPPC 1640P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 1640P can hook 2nd display via a VGA port for dual independent display. IPPC 1640P has two isolated RS232/422/485 ports.

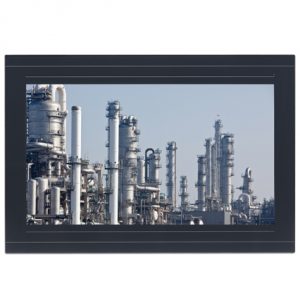

Other models in this series include; Nexcom 1040P, Nexcom IPPC 1670P, Nexcom IPPC 1680P, Nexcom IPPC 2140P, Nexcom IPPC 2170P, Nexcom IPPC 2180P, Nexcom IPPC A1570T, Nexcom IPPC A1770T and Nexcom IPPC A1970T.

We also provide Nexcom Fanless Embedded PCs and low cost Panel PCs.

Additional information



Screen Size
