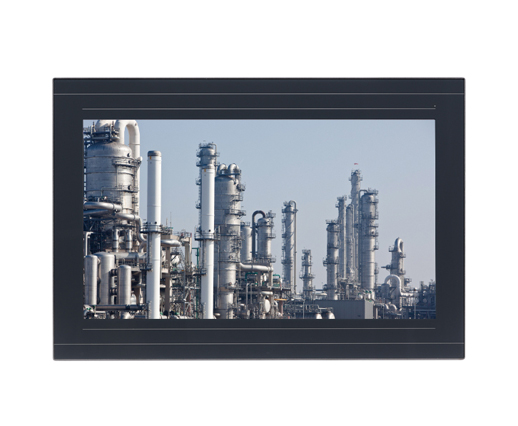

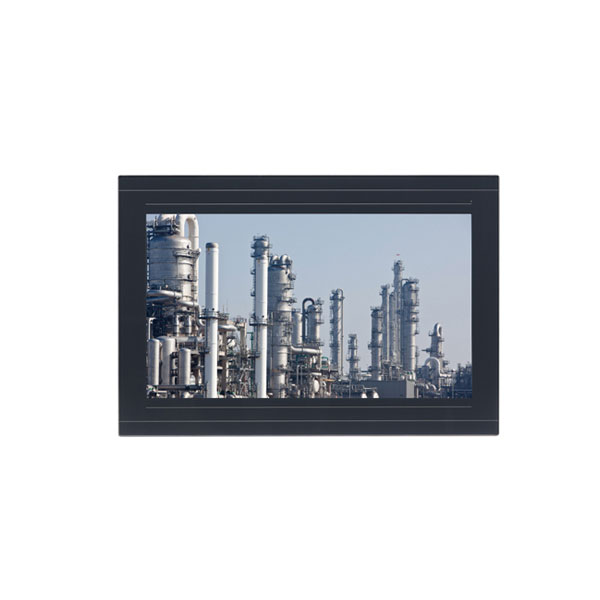

21.5″ Nexcom IPPC 2180P Industrial Panel PC

Main Features:

  • Metal housing with robust aluminum front zero bezel for harsh environment
  • 10 points P-Cap multi-touch with zero bezel flush front design
  • Dual GbE/2nd DisplayPort/Dual USB 3.0 & USB 2.0
  • 1 x mini-PCIe sockets, 1 x M.2, 1 x RS232/422/485
  • DDR3L 8GB/2.5” HDD bracket
  • IP66 compliant front panel
  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • DC power input 24VDC

Downloads

SKU: Nexcom IPPC 2180P Category:

Description

Nexcom IPPC 2180P 21.5″ Industrial Panel PC

21.5” TFT Full HD 16:9 Heavy Industrial Panel PC 6th Generation Intel® Core™ i5-6300U, 2.40 GHz Multi-Touch Screen, 8GB DDR3L, 4 x USB, 3 x COM

The Nexcom IPPC 2180P 21.5” fanless panel PC IPPC 2180P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1920 x 1080 (Full HD) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.

The IPPC 2180P supports WLAN expansion and others via dual Gigabit Ethernet connectors, one mini-PCIe slot and one M.2 slot. With support for DC power input of 24VDC, IPPC 2180P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 2180P can hook 2nd display via a Display Port for dual independent display. IPPC 2180P has one adjustable RS232/422/485 ports.

Additional information

Screen Size

21.5"

Manufacturer

Nexcom
