21.5″ Nexcom IPPC 2140P Industrial Panel PC

IPPC 2140P – 21.5″ Full HD 16:9 Heavy Industrial Panel PC

Main Features:

  • Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 Cache
  • Metal housing with robust aluminum front zero bezel for harsh environment
  • 10 points P-Cap multi-touch with zero bezel flush front design

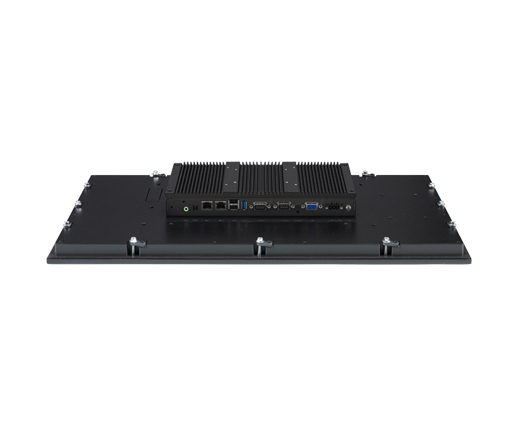

  • Dual GbE/2nd display-VGA/ Line-out/PS2 KB/MS
  • 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
  • DDR3L 8GB/2.5” HDD bracket
  • IP66 compliant front panel
  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • Wide range power input 12~30VDC

Downloads

SKU: Nexcom IPPC 2140P Category:

Description

Nexcom IPPC 2140P 21.5″ Industrial Panel PC

21.5″ Full HD 16:9 Heavy Industrial Panel PC with Intel® Celeron® quad core processor J1900, up to 2.42GHz, Multi-Touch Screen, 8GB DDR3L, 3 x USB, 2 x COM

Nexcom 21.5” fanless panel PC IPPC 2140P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1920 x 1080 (Full HD) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.

Nexcom IPPC 2140P supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, IPPC2140P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 2140P can hook 2nd display via a VGA port for dual independent display. IPPC 2140P has two isolated RS232/422/485 ports.

NEXCOM heavy Industrial Panel PC (IPPC) is equipped with powerful Intel® Processor, TFT LCD Panel with LED backlight, and user-friendly touch design. NEXCOM Industrial Panel PC provides expansion slots for add-on boards in a NEMA4/ IP66 heavy-duty aluminum front bezel and vibration-resistant, its rugged design of aluminum chassis is suitable for any harsh industrial environments. NEXCOM heavy Industrial Touch Monitor (IPPD) shares identical appearance with IPPC series for the same harsh industrial environment application.

Other models in this series include; Nexcom 1040P, Nexcom IPPC 1640P, Nexcom IPPC 1670P, Nexcom IPPC 1680P, Nexcom IPPC 2170P, Nexcom IPPC 2180P, Nexcom IPPC A1570T, Nexcom IPPC A1770T and Nexcom IPPC A1970T.

We also provide Nexcom Fanless Embedded PCs and low cost Panel PCs.



Additional information

Manufacturer

Nexcom

Screen Size

21.5"
