10.1" Nexcom IPPC 1040P Industrial Panel PC

10.1″ Nexcom IPPC 1040P Industrial Panel PC

Main Features:

Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 cache
Metal housing with robust aluminum front zero bezel for harsh environment
10 points P-Cap multi-touch with zero bezel flush front design
Dual GbE/2nd display-VGA/ Line-out

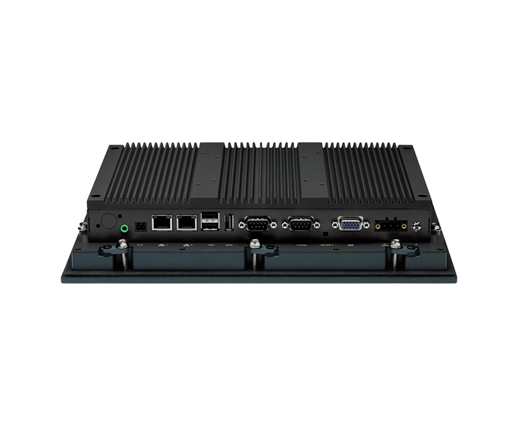

3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
DDR3L 4GB/2.5” HDD bracket
IP66 compliant front panel
Mounting support: panel/wall/stand/VESA 100mm x 100mm
Wide range power input 12~30VDC

Downloads

SKU: Nexcom IPPC 1040P Category: Industrial Panel PCs

Description

Nexcom IPPC 1040P 10.1″ Industrial Panel PC

10.1” TFT WXGA 16:9 Heavy Industrial Panel PC with Intel® Celeron® Quad Core Processor J1900, up to 2.42GHz, Multi-Touch Screen, 4GB DDR3L, 3 x USB, 2 x COM

Nexcom 10.1” fanless panel PC IPPC 1040P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1280 x 800 (WXGA) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.

The IPPC 1040P supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, IPPC 1040P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 1040P can hook 2nd display via a VGA port for dual independent display. IPPC 1040P has two isolated RS232/422/485 ports.

NEXCOM heavy Industrial Panel PC (IPPC) is equipped with powerful Intel® Processor, TFT LCD Panel with LED backlight, and user-friendly touch design. NEXCOM Industrial Panel PC provides expansion slots for add-on boards in a NEMA4/ IP66 heavy-duty aluminum front bezel and vibration-resistant, its rugged design of aluminum chassis is suitable for any harsh industrial environments. NEXCOM heavy Industrial Touch Monitor (IPPD) shares identical appearance with IPPC series for the same harsh industrial environment application.

Other models in this series include; Nexcom IPPC 1640P, Nexcom IPPC 1670P, Nexcom IPPC 1680P, Nexcom IPPC 2140P, Nexcom IPPC 2170P, Nexcom IPPC 2180P, Nexcom IPPC A1570T, Nexcom IPPC A1770T and Nexcom IPPC A1970T.

We also provide Nexcom Fanless Embedded PCs and low cost Panel PCs.
