Red Lion PAX2A Universal Analog Input Meter

Main Features:

  • Universal Analog Input Meter, DC Current, DC Voltage, Process Signals, Resistance, Thermocouples or RTDs
  • Universal Power Supply: 50 to 250 VAC or 21.6 to 250 VDC
  • 6/9 Digit Dual Line/Color Display with 0.7″ and 0.35″ digits
  • Variable Contrast and Intensity Display
  • Meter Update Rate up to 160/Second
  • Built-in Modbus Communications
  • Communications: R232, RS-485, DeviceNet and Profibus (W/Option Card)
  • Setpoint and Analog Outputs (W/Option Card)


SKU: Red Line PAX2A Category:

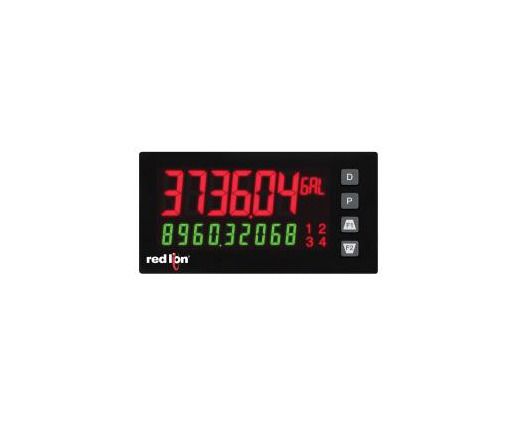

Red Lion PAX2A Dual Line Display Meter / Universal Analog Input Meter

The Red Lion PAX2A provides the maximum in application flexibility, allowing users to stock just one meter for numerous applications.  The input, total, min., max. or setpoints can be displayed on the 0.7″ high
6-digit main LCD display. The main display also offers three programmable, easy-to-read colors: red, orange, and green. The color change can be tied to the setpoints, providing the operator with a visual display of changing conditions in the application. The second display line is a 0.35″, high 9-digit, green LCD that can be programmed for any of the above parameters as well. The 9-digit display accommodates totalizing applications that easily exceed the normal 6-digit displays. In addition to the dual displays, the meter also offers a 3-digit programmable custom unit indicator.
