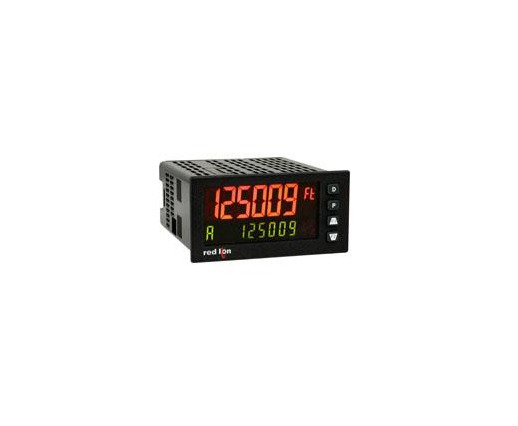

Red Lion PAX2D Universal Digital Input Meter

Main Features:

• Universal Digital Input Meter
• Count, Dual Counter with Math Functions
• Rate, Dual Rate with Math Functions
• Universal Power Supply: 50 to 250 VAC or 21.6 to 250 VDC
• 6/9 Digit Dual Line/Color Display with 0.7″ and 0.35″ digits
• Variable Contrast and Intensity Display
• Meter Update Rate up to 160/Second
• Built-in Modbus Communications
• Communications: R232, RS-485, DeviceNet, and Profibus (W/Option Card)
• Setpoint and Analog Outputs (W/Option Card)


SKU: Red Lion PAX2D Category:


Red Lion PAX2D Universal Digital Input Meter

With its dual display and digital input, Red Lion PAX2D delivers an ideal solution for applications that require two parameters to be visualized at the same time.  Line one consists of a 0.7″ high 6 digit LCD display that can be programmed to show Counters A, B, or C; Rate A, B, or C; or the Hi or Lo values. The color can be tied to the setpoints; providing the operator with a visual display of changing conditions in the application. A second display line can be programmed for any of the above parameters as well. The meter also offers a programmable custom unit indicator for both displays.  PAX2D provides the maximum in application flexibility; by accepting inputs from proximity sensors, magnetic sensors, photo eyes, length sensors, rotary pulse generators, transistors, or a plain switch.

> Main display offers three programmable, easy-to-read colors: red, orange, and green
> The display color can be tied to the setpoints
> Second display line is a 0.35″ high 9 digit, green LCD
> The 9-digit display accommodates totalizing applications that exceed the normal 6-digit displays
> Stock one meter for multiple applications
