Red Lion 516TX 16 Port Unmanaged Ethernet Switch

Main Features:

  • Unmanaged Plug and Play Operation
  • 16 port Industrial Ethernet Switch
    • Sixteen 10/100 BaseTX RJ-45 Ports
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 85° C Operating Temperature
  • Autosensing 10/100BaseTX, Duplex, and MDIX
  • ESD and Surge Protection on all Built-in Ports
  • Up to 2.6 Gb/s Throughput
  • Redundant Power Inputs (10-30 VDC)
  • Bi-Color LED’s For Link, Speed, Activity & Duplex Status
  • Rugged Industrial DIN-Rail Enclosure


SKU: Red Lion 516TX Category:

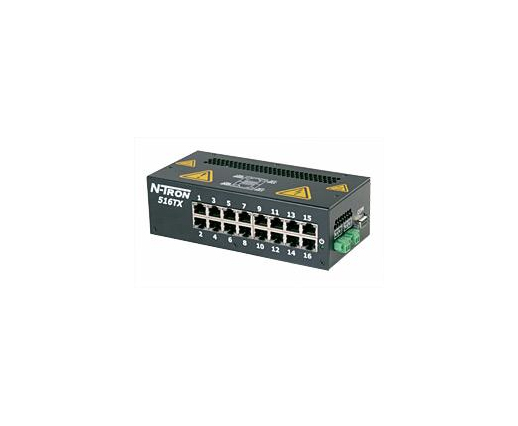

Red Lion 516TX 16 Port Unmanaged Industrial Ethernet Switch

The N-TRON® 516TX Series Industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for connecting Ethernet-enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions.

The Red Lion 516TX, designed to operate in industrial environments, is housed in a rugged DIN-rail-mounted steel enclosure. Optional panel and rack mount kits are also available. The switch comes standard with an extended temperature rating, extended shock and vibration specs, redundant power inputs, and a high MTBF (greater than 2M hours).

The 516TX requires no setup unless the advanced port functions are utilized. The sixteen 10/100BaseTX ports are auto-sensing and auto-configuring. Each port automatically negotiates for maximum speed and performance by default. Bi-color LEDs are provided to display the link status, link speed and activity of each port as well as power on/off status.

The 516TX supports up to 4,000 MAC addresses and uses advanced IEEE 802.3 Fast Ethernet 10/100BaseTX switching technology to eliminate network collisions and increase network determinism. A high-speed processor and backplane provide outstanding throughput performance.

For more information about Red Lion 516TX 16 Port Unmanaged Industrial Ethernet Switch, contact us here

Additional information


Red Lion Controls
