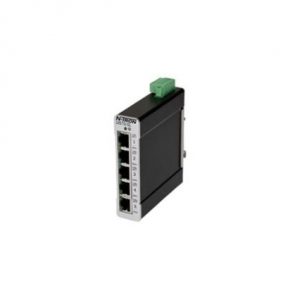

Red Lion 105TX 5 Port Unmanaged Ethernet Switch

Main Features:

  • Unmanaged Plug and Play Operation
  • 5 Port 10/100BaseTX Industrial Ethernet Switch
    • Five 10/100BaseTX RJ-45 Ports
  • Compact, Space Saving Package
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 80°C Operating Temperature
    • >2M Hours MTBF
  • Supports Full/Half Duplex Operation
  • Up to 1.0 Gb/s Maximum Throughput
  • MDIX Auto Sensing Cable
  • Auto Sensing Speed and Flow Control
  • Full Wire Speed Communications
  • ESD and Surge Protection on all Built-in Ports
  • Surge Protection Diodes on Power Inputs
  • Store-and-forward Technology
  • Redundant Power Inputs (10-30 VDC)
  • LED Link/Activity Status Indication
  • Hardened Metal DIN-Rail Enclosure



Downloads

SKU: Red Lion 105TX Category:

Description

Red Lion’s N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.

The N-TRON® 105TX is a low cost unmanaged five port Industrial Ethernet Switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications.

Additional information

Manufacturer

Red Lion Controls
