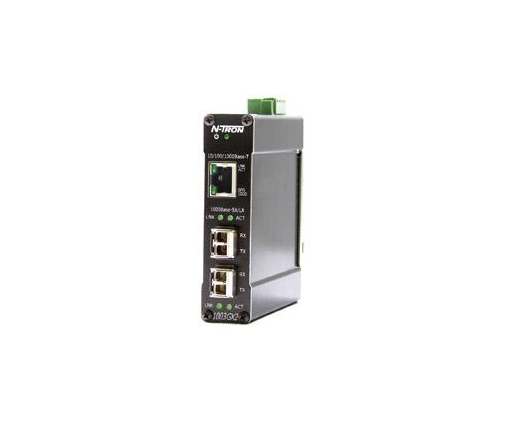

Red Lion 1003GX2 Gigabit Industrial Ethernet Switch

Main Features:

  • Unmanaged Plug and Play Operation
  • 3 Port Gigabit Industrial Ethernet Switch
    • One 10/100/1000BaseT RJ-45 Port
    • Two 1000BaseSX/LX SFP (Mini-GBIC) Ports
      • Mix-and-Match Multimode and Singlemode
        LC Style SFP (Sold Separately – Unit must be fully populated with two SFP transceivers upon shipment.)
  • Compact Size, Small Footprint
  • Extended Environmental Specifications
    • -40° to 85°C Operating Temperature
  • IEEE 802.3 Compliance
  • >2M Hours MTBF
  • RJ-45 Port Supports Full/Half Duplex Operation
  • Up to 6.0 Gb/s Maximum Throughput
  • Supports up to 1,024 MAC Addresses
  • Store-and-forward Technology
  • RJ-45 Port Auto Senses Speed and Flow Control
  • Full Wire Speed Communications
  • MDIX Auto Cable Sensing (RJ-45)
  • Hardened Metal DIN-Rail Enclosure
  • LED Link/Activity Status Indication
  • Redundant Power Inputs (10-30 VDC)

Downloads

SKU: Red Lion 1003GX2 Category:

Description

Red Lion 1003GX2 3 Port Unmanaged Industrial Ethernet Switch

Red Lion’s N-Tron® series 1000 unmanaged Gigabit Ethernet switches offer fiber and copper port configurations, wide operating temperature range support and excellent EMI protection. Housed in a hardened metal DIN-rail mountable enclosure, these industrial switches are ideal for mission-critical data acquisition, security surveillance, control and Ethernet I/O applications.

The Red Lion 1003GX2 is an unmanaged three port Gigabit Industrial Ethernet Switch. It is housed in a hardened, metal DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications. The 1003GX2 Gigabit Industrial Ethernet Switch is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime.



Additional information

Manufacturer

Red Lion Controls
