Nexcom NISE 3900R Fanless Computer

Main Features:

  • Support 8th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
  • Intel® Q370 PCH
  • Support 1 x 2.5″ SATA HDD
  • 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
  • Three Intel® GbE LAN ports; support WoL, teaming and PXE
  • 1 x External M.2 socket and 1 x SIM card socket
  • 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow contol
  • 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
  • Support +9V to 30VDC input; ATX power mode



Downloads

SKU: Nexcom NISE 3900R Category:

Description

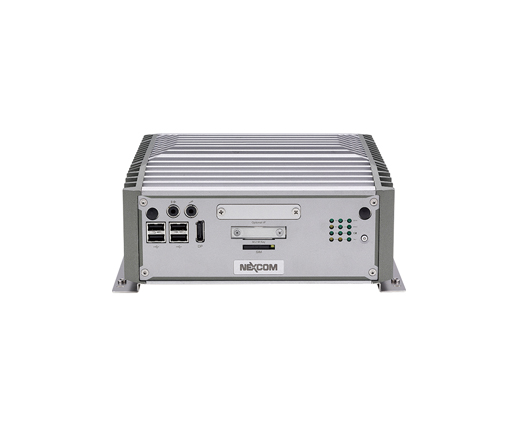

Nexcom NISE 3900R Fanless Computer

Integrated with 8th generation Intel® Core™ i7/i5/i3 processors, Nexcom NISE 3900R is a fanless computer designed for industrial applications which demand high CPU and graphics performance. NISE 3900 supports up to 16G DDR4 memory and have several options on storage devices like M.2, HDD or SSD. NISE 3900 supports wide range of DC input from +9V to 30V DC input, and can be operated in an extended operating temperature range between -5 to 55 Celsius degree. For extended module availability, NISE 3900 also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules).

Core™-i Performance

Featuring high computing power and outstanding graphics capabilities, fanless Core™-i Performance Series models support a variety of external displays. Every Core™-i Performance product offers a superb complement to digital signage, industrial automation, smart machinery, and transportation.

We also offer a range of Nexcom Industrial Panel PCs, low-cost Panel PCs and Panel Mount Monitors.

Additional information

Manufacturer

Nexcom
