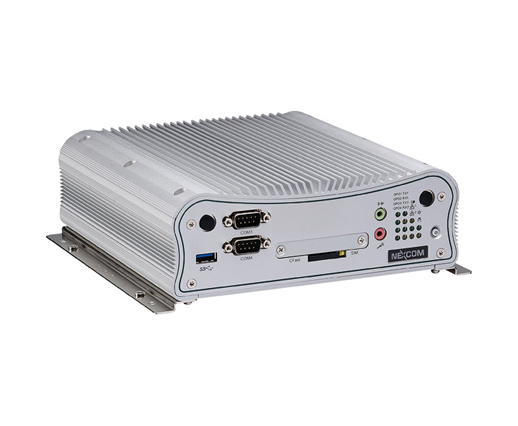

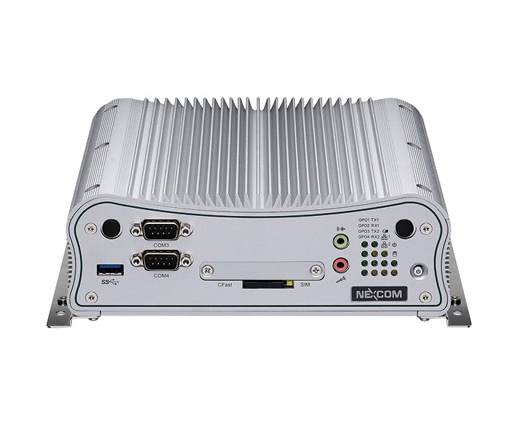

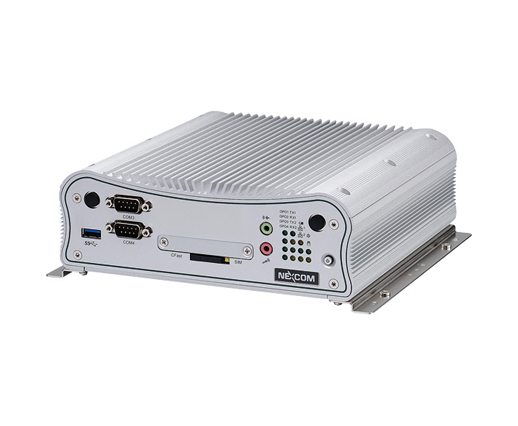

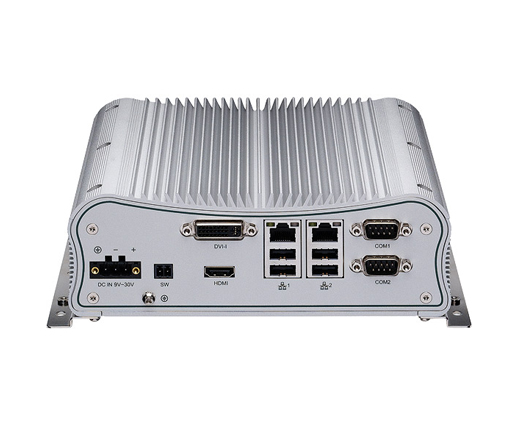

Nexcom NISE 2400 – J1900 Fanless Embedded PC

Main Features:

  • Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz
  • Dual independent display from DVI-I and HDMI
  • 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
  • 4 x USB 2.0 & 1 x USB 3.0
  • 2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
  • 2 x mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G/Fieldbus modules
  • Support -5 to 55 degree Celus extended operating temperature
  • Support 9-30V DC input



SKU: NISE 2400- J1900 Category:


Nexcom NISE 2400 – J1900 Fanless Embedded PC – Intel® Celeron® Processor J1900 Quad Core Fanless System

Powered by Intel® Celeron® Processor J1900 Quad Core, 2.0GHz. Driven by the latest Quad Core Intel® Celeron® Processor, Nexcom NIE2400-J1900 can provide excellent computing power and is more power-efficient than the platforms based on the previous generation Intel® Celeron® product family.

NISE2400-J900 supports up to 8G DDR3L memory and have several options on storage devices like CFast, HDD, SSD or mSATA . The NISE2400-J900 comes with 1 x HDMI, 1 x DVI-I, 2 x GbE LAN ports, 2x COM port with RS232/422/485 and 5x USB ports including one USB 3.0. NISE2400-J900 supports 9~30V DC input, and can be operated in an extended operating temperature range from -5 to 55 degrees Celsius. This Fanless system supports two mini-PCIe modules, which can be an excellent platform for IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and factory automation applications with optional fieldbus module. Its expansion versatility makes NISE2400-J900 a perfect platform for factory automation and M2M intelligent computing applications.

Housed in rugged aluminum chassis, fanless Atom® Power Series computers easily operate in a wide range of temperatures. With industrial-grade components that deliver exception quality and a ruggedized design, fanless Atom® Power Series computers provide reliable and noiseless performance. The Atom® Power Series deploys worry-free in the harsh environments associated with factory automation, industrial automation, and transportation.

Other models in this series include; Nexcom NISE 2400, Nexcom NISE 2410/2410E and Nexcom 2420.

We also supply a range a Nexcom low cost Panel PCs and rugged Industrial Panel PCs.
