Advantech ARK-1220L Fanless Embedded PC

Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC

Main Features:

  • Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz

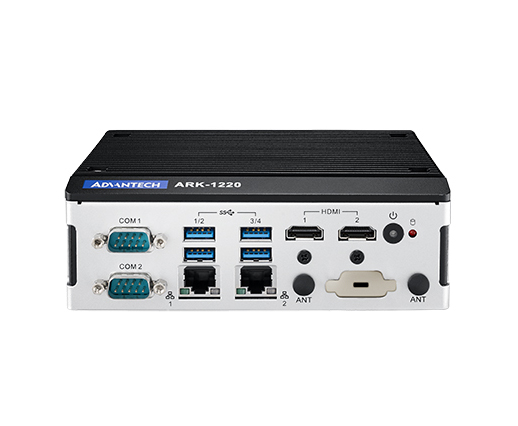

  • DIN-Rail system with essential I/O ports on front-side bezel
  • 2 x Intel GbE and 4 x USB 3.0
  • Dual HDMI display up to 4K resolution
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
  • 1 x 2.5” SATA III SSD and 1 x full-size mSATA*

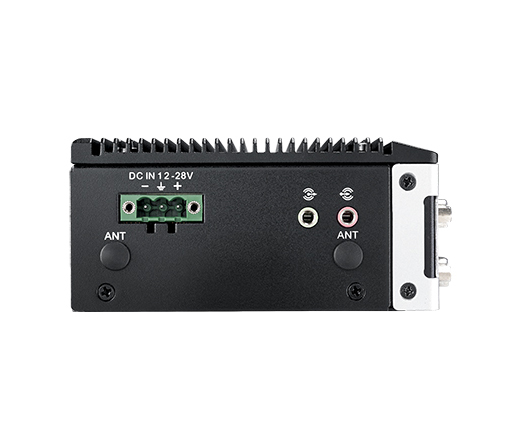

  • 12V ~ 28V wide range power input
  • -30 ~ 70°C extended operating temperature
  • Advantech WISE-PaaS support

Downloads

SKU: Advantech ARK-1220L Category:

Description

Advantech ARK-1220L Fanless Embedded PC

ARK-1000 series features ultra small and low power consumption designs that offer sufficient storage and PCIe expansion capability for easy implementation as Embedded Computers, which is ideal for space-limited applications with IoT gateways, edge computing, and modular systems.

The Advantech ARK-1220L adopts Intel Atom® E3940 QC processors with front accessible I/O ports on single bezel—targeting applications such as machine automation, intelligent factories, in-cabinet equipment integration, and IoT gateways. To enable effective device management, the ARK-1220 comes pre-loaded with Advantech’s new IoT device management App: WISE-PaaS/DeviceOn. This App includes hardware security certification and parameter settings required by the relevant application domain to help simplify the initial deployment phase and subsequent management.

Read our blog and discover how to enable effective device management with compact DIN rail fanless embedded PCs for intelligent manufacturing from Advantech, click here >

Additional information

Manufacturer

Advantech
