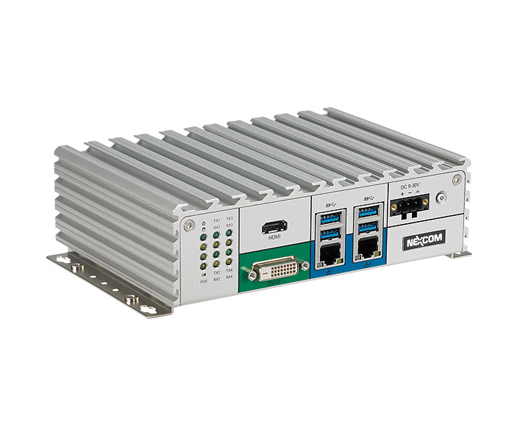

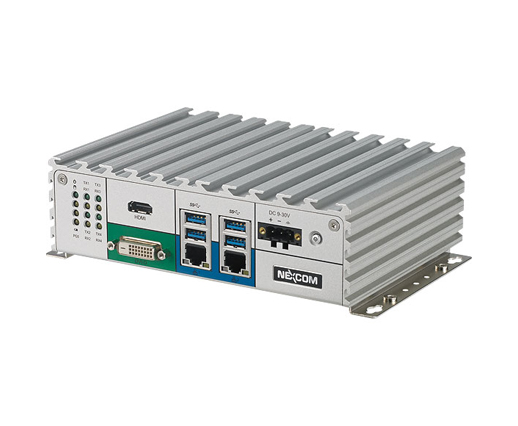

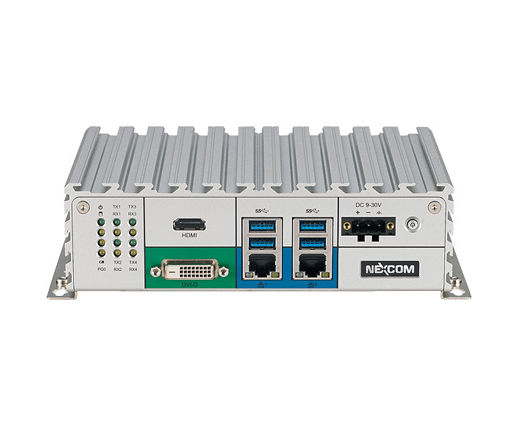

Nexcom NISE 106-N3160 Fanless Embedded PC

Main Features:

  • Onboard Intel® Celeron® Processor N3160 Quad Core, 1.6GHz
  • 3 x display output: 1 x HDMI display + 1 x DVI-D + 1 x DP port
  • 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
  • 4 x USB 3.0

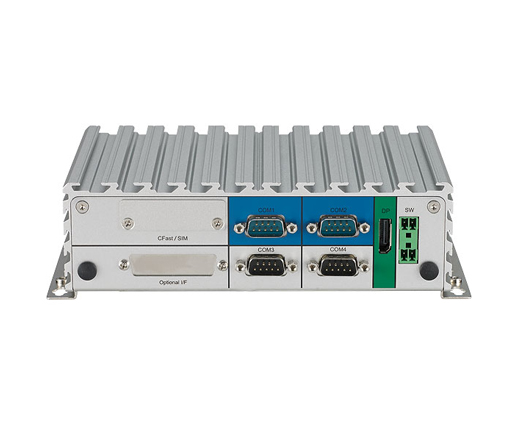

  • 2 x DB9 for RS232/422/485, 2 x DB9 for RS232
  • 1 x optional interface for optional Wi-Fi/3.5G/LTE modules
  • Support -5°C~55°C extended operating temperature
  • Support 9~30V DC input


SKU: Nexcom NISE 106-N3160 Category:


Nexcom NISE 106-N3160 Fanless Embedded PC

Intel® Pentium® Processor N3710 Quad Core Fanless System

Powered by the latest generation of Intel® Celeron® Processor N3160 Quad Core, 1.6GHz (formerly codenamed “Braswell “), Nexcom NISE 106-N3160 presents intelligent PC-based controller and IOT gateway for factory automation. Up to 8G DDR3L memory, The NISE 106 support operating temperature from -5 up to 55 degree C with typical DC input 9~30V. The NISE 106 has high integration ability with optional Mini-PCIe module and 4 x COM ports which makes it a reliable connection with devices in factory automation applications, IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 106 is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.

Other box PCs from Nexcom in this series include; Nexcom NISE 105, Nexcom NISE 105-E3845Nexcom NISE 105U, Nexcom NISE 106-N3710 and Nexcom NISE 108.

We also supply a range a Nexcom low cost Panel PCs and rugged Industrial Panel PCs
