Nexcom NISE 105U Fanless Embedded PC

Main Features

  • Onboard Intel® Celeron® processor J1900 quad core, 2.42GHz
  • Dual independent display from DVI-I and HDMI
  • 2 x Intel® I210AT GbE LAN ports; support WoL, teaming and PXE
  • 2 x USB 2.0, 1 x USB 3.0
  • 4 x COM ports (COM1 & COM2 with RS232/422/485, jumper-free setting)
  • 1 x Optional interface for optional Wi-Fi/3.5G
  • Support -5 to 55 degrees Celsius operating temperature
  • Support 9-30VDC input

Downloads

SKU: Nexcom NISE 105U Category:

Description

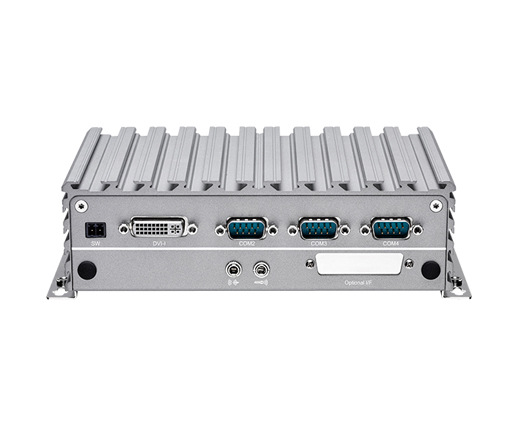

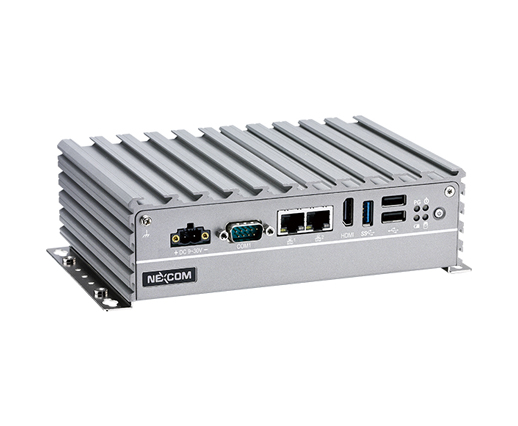

Nexcom NISE 105U Fanless Embedded PC

Intel® Celeron® Processor J1900 Quad Core Fanless System

Powered by Intel® Celeron® processor (formerly codenamed “Bay Trail”), the Nexcom NISE 105U fanless embedded pc provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. Up to 8G DDR3L memory, NISE 105U have several options on storage devices like M.2, HDD and SSD. The NISE 105U support wide DC input range from 9-30VDC. The NISE 105U has high integration ability with optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications (with optional PROFIBUS®, PROFINET®, DeviceNET®, EtherCAT®, EtherNet/IP™ Master module), network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105U is definitely the top choice for M2M intelligent system and factory automation platforms.

Models serve as ideal centerpieces in space-critical, entry-level applications such as data acquisition, digital signage, gate control, self-service systems, kiosks, and points of sale.

Other box PCs from Nexcom in this series include; Nexcom NISE 105, Nexcom NISE 105-E3845, Nexcom NISE 106-N3160, Nexcom NISE 106-N3710 and Nexcom NISE 108.

We also supply a range a Nexcom low cost Panel PCs and rugged Industrial Panel PCs

Additional information

Manufacturer

Nexcom
