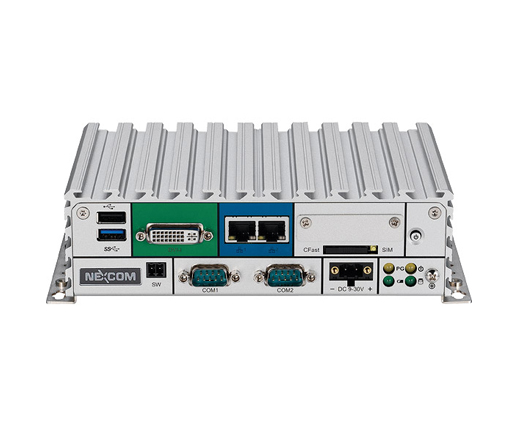

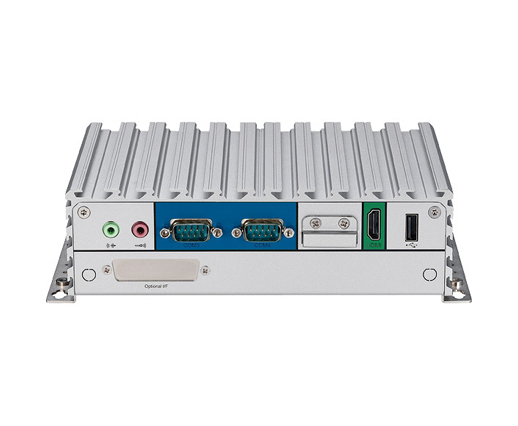

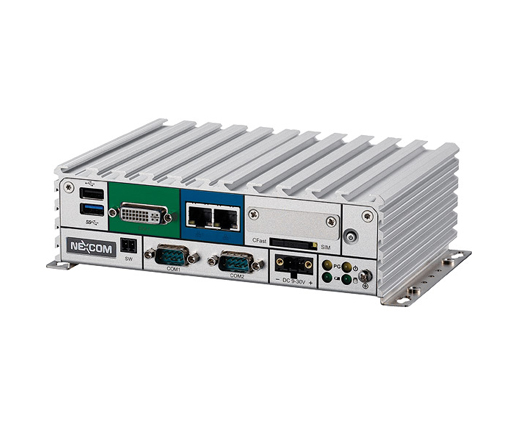

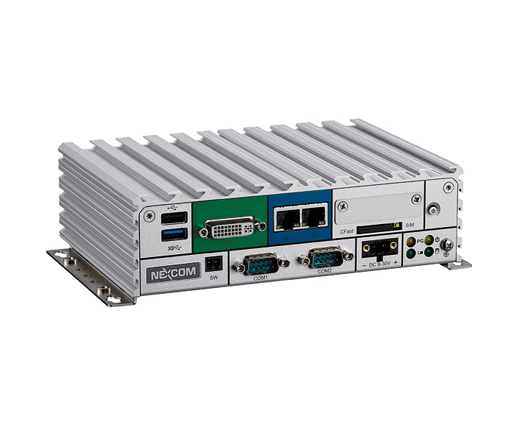

Nexcom NISE 105-E3845 Fanless Embedded PC

Main Features:

  • Onboard Intel Atom® processor E3845 Quad Core, 1.91GHz
  • Dual Independent Display from DVI-I and HDMI
  • 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE
  • 2 x USB 2.0 & 1 x USB 3.0
  • 4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)
  • 1 x Optional Interface for optional Wi-Fi/3.5G modules
  • External RTC battery holder for easy replacement
  • Support -5~55 degree C operating temperature
  • Support 9-30VDC input (nominal DC input: 24V)


SKU: Nexcom NISE 105-E3845 Category:


Nexcom NISE 105-E3845 Fanless Embedded PC

Powered by the latest generation of Intel Atom® processor E3845 (formerly codenamed “Bay Trail-I”), the Nexcom NISE 105-E3845 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. NISE 105-E3845 support ACP ThinManager that offers management solutions for the modern factory by simplifying management and also support Indusoft for HMI and SCADA. Up to 8G DDR3L memory, NISE 105-E3845 have several options on storage devices like CFast, HDD and SSD. In addition to no cable connection on the NISE 105-E3845, it brings NISE 105-E3845 the sustainability to work in harsh environment both with temperature and vibration concern. The NISE 105-E3845 has high integration ability with optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications (with optional PROFIBUS®, PROFINET®, DeviceNET®, EtherCAT®, EtherNet/IP™ Master module), network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105-E3845 is definitely the top choice for M2M intelligent system and factory automation platforms.

Other box PCs from Nexcom in this series include; Nexcom NISE 105UNexcom NISE 106-N3160Nexcom NISE 106-N3710 and Nexcom NISE 108.

We also supply a range a Nexcom low cost Panel PCs and rugged Industrial Panel PCs
