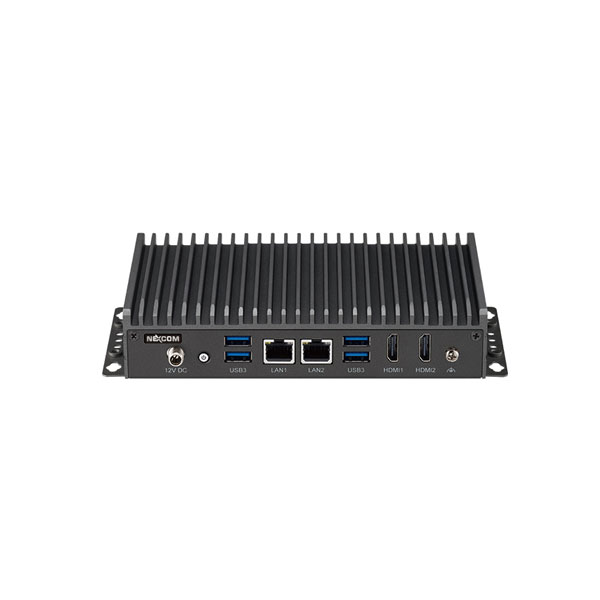

Nexcom Neu-X104-N355 Edge Computing System

Main Features

  • Intel® Processor N355
  • Slim compact chassis and fanless design
  • 1 x DDR4 3200 SO-DIMM, up to 16GB
  • Support 2 x HDMI® 1.4 output 4K@30Hz
  • TPM 2.0 onboard design for security
  • Richful I/O connectivity: 2 x 2.5GbE LAN, 4 x USB 3.2 Gen1
  • 1 x M.2 2242 Key M for supporting PCIe & SATA storage device
  • 1 x Mini PCIe slot supports Wi-Fi and LTE module
  • Support power input 12 VDC

Downloads

SKU: Nexcom Neu-X104-N355 Categories: ,

Description

The Nexcom Neu-X104-N355 is powered by Intel® Processor N355, offering enhanced computing performance, power efficiency, and a comprehensive set of IoT features. It supports dual HDMI® 1.4 display outputs, dual 2.5GbE LAN ports, four USB 3.2 Gen 1 ports, one RS-232/RS422/RS485 port, and an M.2 Key M 2242 storage slot that accommodates both PCIe and SATA. Additionally, the mPCIe slot supports LTE and Wi-Fi 6/6E/7 modules, enabling wide-area coverage and real-time data transmission for gateway applications.

With its slim, compact, fanless design and enhanced durability, the Nexcom Neu-X104-N355 is well-suited for various applications, including IoT gateways, self-service kiosks, endless aisles, QSRs, digital signage, smart poles, intelligent lighting systems, and PIDS (passenger information display system) to make our cities smarter.

To speak with one of our experts about Nexcom’s edge computing system, contact us here.

Additional information

Manufacturer

Nexcom
