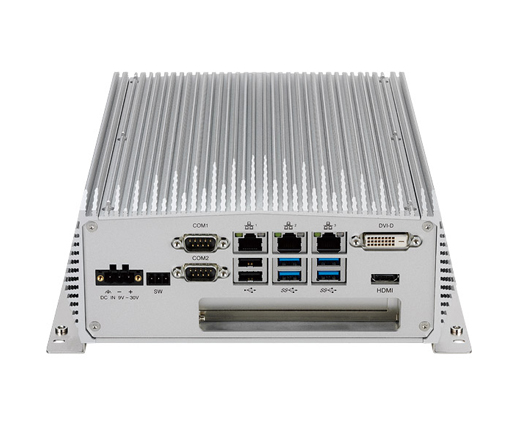

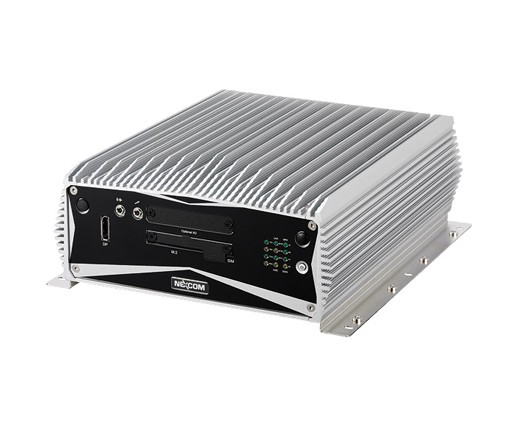

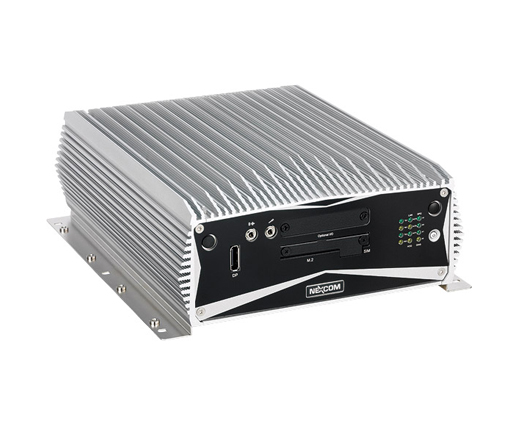

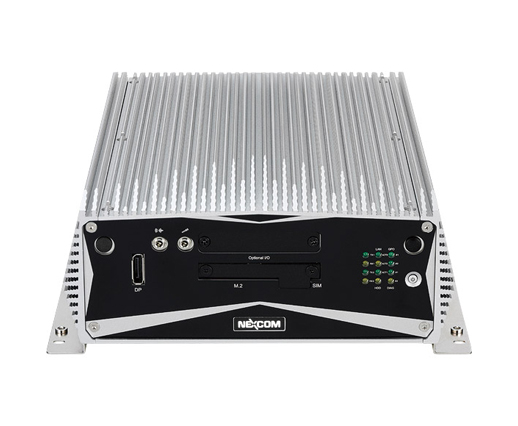

Nexcom NISE 3800E Fanless Embedded PC

Main Features:

  • Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
  • Intel® Q170 PCH
  • Support 1 x 2.5″ SATA HDD
  • 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
  • Three Intel® GbE LAN ports; support WoL, teaming and PXE
  • 1 x External M.2 socket and 1 x SIM card socket
  • 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow contol
  • 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
  • Support +9V to 30VDC input; ATX power mode
  • One PCIe x4 expansions


SKU: Nexcom NISE 3800E Category:


Nexcom NISE 3800E Fanless Embedded PC – 6th Generation Intel® Core™ i7/i5/i3 LGA Fanless System with Expansion

Integrated with 6th generation Intel® Core™ i7/i5/i3 processors, Nexcom NISE 3800E is the fanless PC designed for industrial applications which demand high CPU and graphics performance. Nexcom NISE 3800 supports up to 32G DDR4 memory and have several options on storage devices like M.2, HDD, mSATA or SSD. NISE 3800 supports wide range of DC input from +9V to 30V DC input, and can be operated in an extended operating temperature range between -5 to 55 Celsius degree. For extended module availability, NISE 3800 also designed two internal mini-PCIe sockets to support IoT applications (integrate with optional GbE LAN, Wi-Fi, 3.5G module) and common communication applications (integrate with optional GPIO, RS232/422/485 module).

Core™-i Performance

Featuring high compute power and outstanding graphics capabilities, fanless Core™-i Performance Series models support a variety of external displays. Every Core™-i Performance product offers a superb complement to digital signage, industrial automation, smart machinery, and transportation.

We also supply a range a Nexcom low-cost Panel PCs and rugged Industrial Panel PCs.
