Advantech UNO-430

Advantech UNO-430 IP69K/IP68 Waterproof Edge Intelligence Gateway

Main Features

  • Intel® Atom E3950 Quad-core processor with 8G DDR3L memory
  • Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE & GPS expansion
  • 2 x GbE, 2 x RS-422/485 (isolated) ,1 x RS-232 (console) and hardware security TPM2.0
  • IP69K and IP68-rated protection from water and dust
  • -40~70°C wide operating temp design for harsh environment

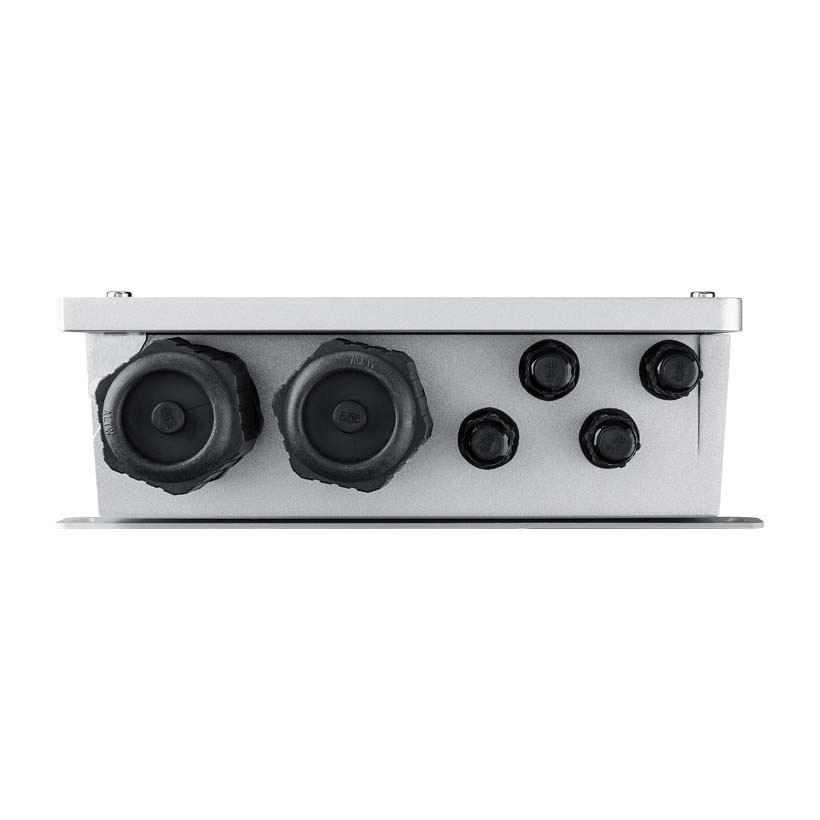

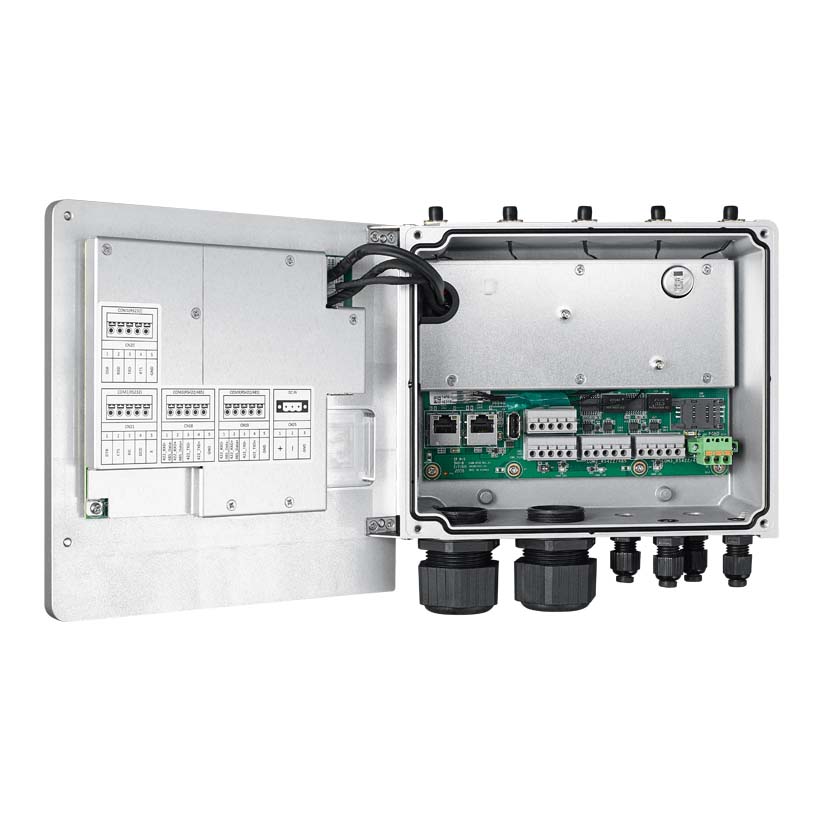

  • Easy maintenance with front door and cable gland design saves special waterproof cable wiring effort
  • Bi-direction wall mount support
  • RED Compliance

Downloads

SKU: Advantech UNO-430 Categories: ,

Description

Advantech UNO-430-E1A IP69K/IP68 Waterproof Edge Intelligence Gateway

All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with both M.2 3052/3042 key B, M.2 2230 key E, GPS support, TPM 2.0.

Advantech UNO-430 is a highly ruggedized gateway featured with IP69K/68 Waterproof and -40~70°C wide operating temp, which is suitable for general outdoor and indoor application to withstand harsh environments.



Additional information

Manufacturer

Advantech
