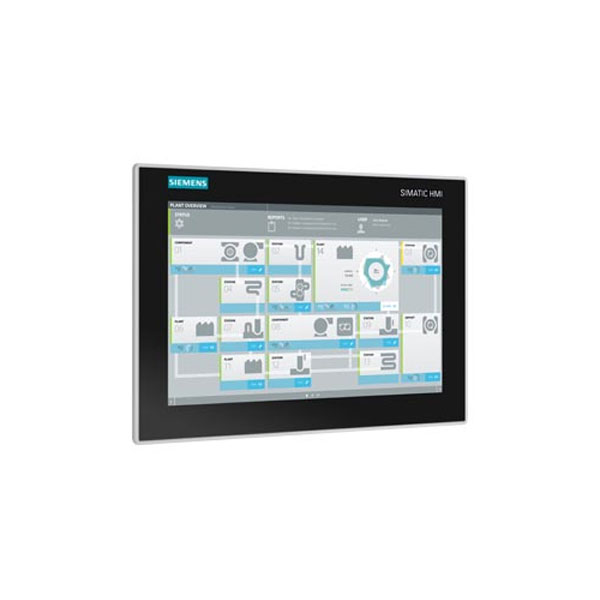

Siemens SIMATIC IPC377E Industrial Panel PC

Main Features:

  • 12, 15 or 19 inch diagonal screen
  • Anti-glare glass front, analog-resistive with single-touch operation, scratchproof and resistant to chemicals
    – Sharp and high-contrast image representation with uniform brightness for better readability
    – Metal surround for protection from damage
  • Latest Intel Celeron Quad Core processor (N3160, 1.6 GHz)
  • Expandable up to 8 GB RAM
  • Gigabit Ethernet
  • USB 3.0
  • Mini PCI for easy expansion
  • Device design without fan
  • VGA Interface
    – Up to 4 x COM (RS232/RS485/RS422)
    – Up to 4 x USB



SKU: Siemens SIMATIC IPC377E Category:

Description

Siemens SIMATIC IPC 377E Panel PC: an immediately available, economical package comprising a SIMATIC Industrial PC and operator display for industrial applications.

The SIMATIC IPC377E Panel PC provides a preconfigured, turnkey and complete solution comprising a SIMATIC Industrial PC and a brilliant, rugged single-touch display with glass front available with 12, 15 or 19 inch diagonal screen. The Panel PC is especially well suited for all industrial applications, especially for economical implementation of HMI applications, the acquisition and networking of production and energy data in production environments, such as assembly workstations, warehouses and logistics systems, or for standard applications in the image processing field. It is easy to integrate also in existing machines and plant concepts. The SIMATIC IPC377E is available directly from stock in a total of six variants (12″/15″/19″, each without operating system or with preinstalled Windows 7 Ultimate / Windows 10 Enterprise LTSB 2016) and at an attractive package with corresponding HMI software.

Additional information

Manufacturer

Advantech
