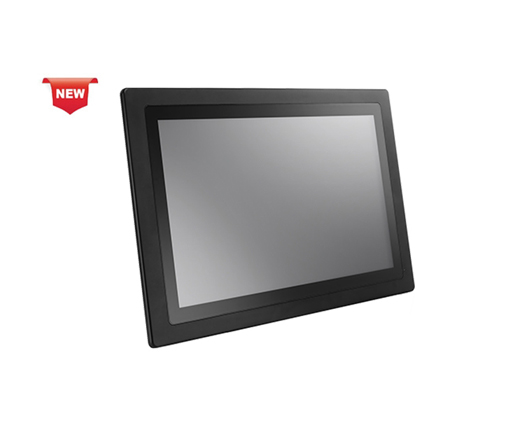

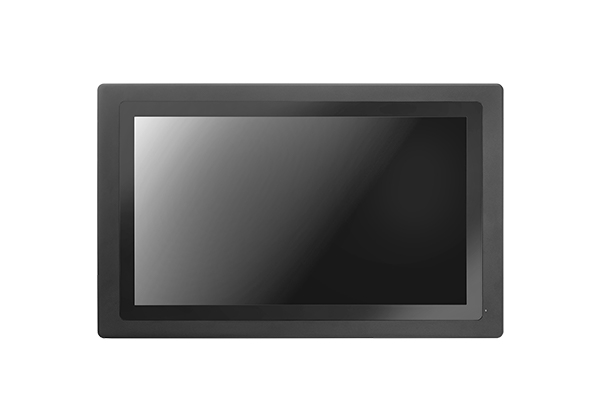

22″ Wincomm WLP-7G20-22 Industrial Panel PC

Main Features:

  • Intel® 8th Generation Core i7/i5/i3 CPU
  • 21.5″ 1920 x1080 LCD Panel
  • Panel Mount w/Full Flat Res. or P-Cap Touch
  • Full Flat Design Easy Clean & Front IP66
  • Support Intel® vPro by Optional i7/i5 CPU
  • Wide Range DC Input
  • Optional WLAN with External Antenna
  • Optional Second HDD for RAID 0,1


SKU: Wincomm WLP-7G20-22 Category:


22″ Wincomm WLP-7G20-22 Industrial Panel PC

Wincomm WLP-7G20-22 is built to suit for versatile environments, undergoing rigorous testing to ensure safety and top performance. All of the models in the WLP series are sealed to at least IP66 standards, and offering the best solution for environments with hygienic considerations. Featuring at full flat resistive touch, chassis mount, Wincomm industrial panel PCs go beyond that of the standard industrial panel computes with elegant, rugged construction, powerful performance, and flexible mounting options making it ideal for machine controller, command centers, enabling rapid communication, and fast, efficient computing. The WLP series works well in industrial automation, such as food, beverage, pharmaceutical industry, including chemical manufacturing and any other industrial applications. Wincomm takes our users concern and all applications are designed to be WLP series.

Wincomm WLP-7G20-22 Highlights:

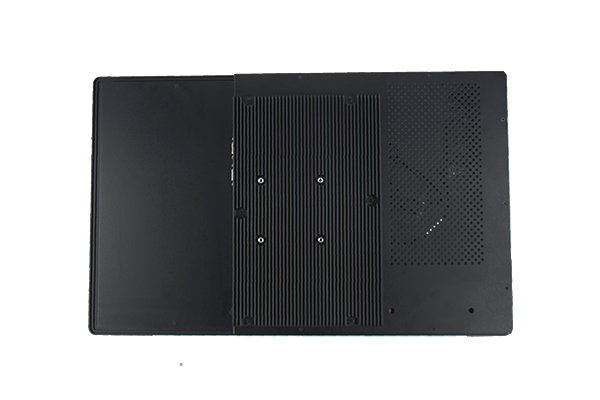

  • Powerful thermal solutions with stable CPU operation: Fanless cooling by high efficiency heat pipe and large heat dissipation heatsink, optimal MB power design to maximise power efficiency and minimise
    heat generation.
  • Environmental Solution: WLP-H & V Series support wide temp from -20°C to 65°C, and optimal high brightness LCD without limitation.
  • PoE & Car Ignition Control: With chassis type housing and P-cap touch in 10.1”, WLP-7B21-10 features its slim and pleasing look. Equips with low power consumption N2930 Processor, WLP-7B21-10
    could enrich the HMI control more efficiency.  Also support the latest PoE and car ignition control, making it an ideal and cost-effective solution for access control, home and industrial automation.
  • Water/dust proof guarantee withstands strong water jet cleaning: A rubber seal is attached at inner bezel edge, with firmly panel mounting, the IP rate between front bezel and mounting wall is IP69K grade. By resistive touch screen, front IP rate is IP66; by project capacitive touch screen, front IP rate is IP69K.

Other screen sizes include:
Wincomm WLP-7G20-15

Read the press release:
Wincomm Launches Intel 8th gen. Core i Whiskey Lake CPU WLP-7G20 Fanless Industrial Panel PC Series

Additional information


Wincomm Corporation

Screen Size
