Red Lion G09C0000 9″ Rugged Indoor Graphite HMI

Main Features:

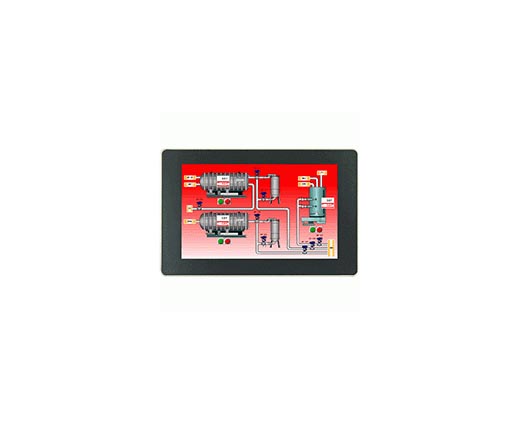

  • 9 inch WVGA Color Widescreen touchscreen (800 x 480) – Indoor Model
  • Up to 20 Simultaneous Protocol Conversions
  • One 10/100 Base-TX Ethernet Port
  • Three Fully Isolated Serial Communication Ports, (two RS-232 and one RS-422/485)
  • One USB Type B Port
  • Two High-retention USB Host Ports

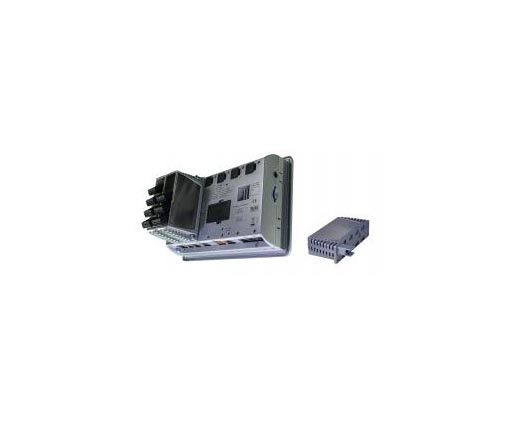

  • 6 Module Slots to Easily add I/O Capability with Plug-in Modules
  • 256 x 164 mm Dimensions
  • OPC UA Client Driver / OPC UA Historical Access
  • Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
  • Store and Forward Buffering for Cloud Connectors

Downloads

SKU: Red Lion G09C0000 Category:

Description

Red Lion G09C0000 9″ Rugged Indoor Graphite HMI is sleek, rugged, and flexible.

From factories to extremely remote locations, Red Lion’s HMI operator panels enable customers to easily connect, monitor, and control processes across a diverse range of industries, including manufacturing, oil and gas, and water/wastewater.

Red Lion’s Graphite® operator panels are the first rugged HMI touchscreens in the industry to integrate I/O modules with protocol conversion, data logging, web-based monitoring, and IEC 61131 control capabilities. Optional expansion racks can enhance these capabilities, allowing organizations to connect, monitor, and control a greater number of industrial processes.

For more information and pricing, contact our technical sales team here. We are here to help.

Additional information

Manufacturer

Red Lion Controls

Screen Size

9"
