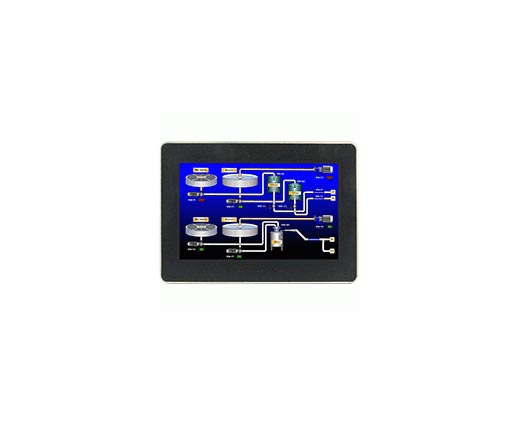

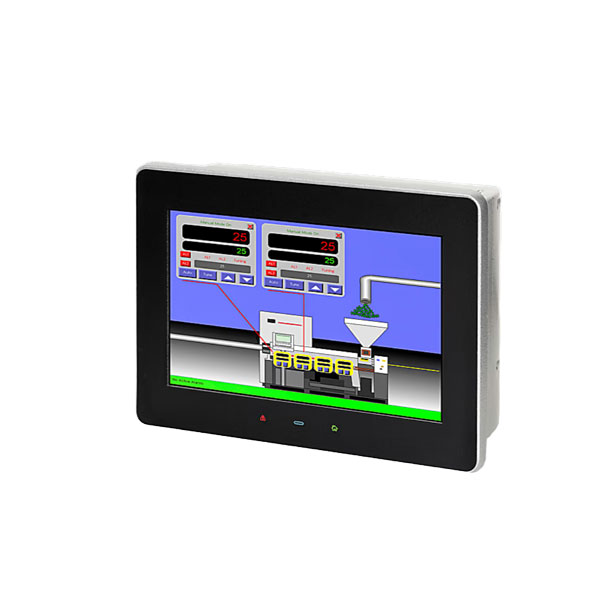

Red Lion G07S0000 7″ Rugged Outdoor Graphite HMI

Main Features:

  • 7″ WVGA Color Widescreen touchscreen HMI (800 x 480) Outdoor Model
  • Up to 20 Simultaneous Protocol Conversions
  • One 10/100 Base-TX Ethernet Port
  • Three Fully Isolated Serial Communication Ports, (two RS-232 & one RS-422/485)
  • RS-232 to Ethernet (Serial to Ethernet) Support
  • One USB Type B Port
  • Two High-retention USB Host Ports

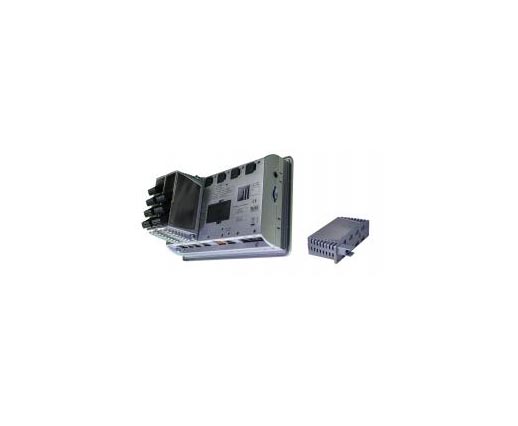

  • 5 Module Slots to Easily add I/O Capability with Plug-in Modules
  • 196 x 140mm Dimensions
  • OPC UA Client Driver / OPC UA Historical Access
  • Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
  • Store and Forward Buffering for Cloud Connectors

Downloads

SKU: Red Lion G07S0000 Category:

Description

SLEEK. RUGGED. FLEXIBLE. RED LION IS THE BEST CHOICE FOR HMI PANELS.

From factories to extreme remote locations, Red Lion’s HMI operator panels enable customers to easily connect, monitor and control processes across a diverse range of industries that include manufacturing, oil and gas and water/wastewater.

Red Lion’s Graphite® operator panels are the industry’s first rugged HMI touchscreens to combine I/O modules with protocol conversion, data logging, web-based monitoring and IEC 61131 control capabilities. Optional expansion racks extend capabilities to enable organisations to connect, monitor and control more industrial processes.

Additional information

Manufacturer

Red Lion Controls

Screen Size

7"
