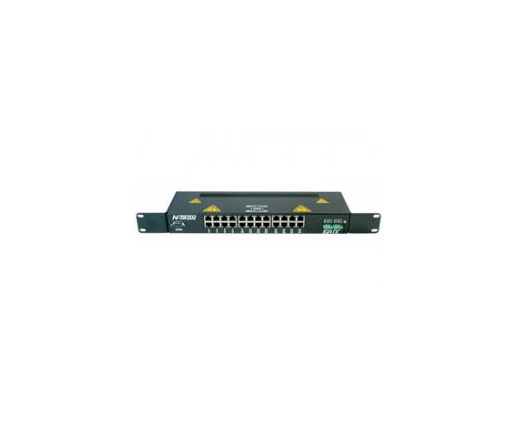

Red Lion 524TX 24 Port Unmanaged Ethernet Switch

Main Features:

  • Unmanaged Plug and Play Operation
  • 24 Port Rackmount Industrial Ethernet Switch
    • Twenty-Four 10/100 BaseTX RJ-45 Ports
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 85° C Operating Temperature
  • Autosensing 10/100BaseTX, Duplex, and MDIX
  • ESD and Surge Protection on all Built-in Ports
  • Up to 2.6 Gb/s Backplane
  • Redundant Power Inputs (10-30 VDC)
  • Bi-Color LED’s For Link, Speed, Activity & Duplex Status
  • Rugged Industrial Rackmount Enclosure

Downloads

SKU: Red Lion 524TX Category:

Description

Red Lion 524TX 24 Port Unmanaged Industrial Ethernet Switch

The N-TRON® 524TX Series Industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for connecting Ethernet-enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions.

The 524TX, designed to operate in industrial environments, is housed in a rugged rackmounted steel enclosure. The switch comes standard with extended temperature rating, extended shock and vibration specs,  redundant power inputs, and a high MTBF (greater than 1M hours).

The Red Lion 524TX requires no setup unless the advanced port functions are utilized. The twenty-four 10/100BaseTX ports are auto sensing and auto configuring. Each port automatically negotiates for maximum speed and performance by default. Bi-color LEDs are provided to display the link status, link speed and activity of each port as well as power on/off status.

The 524TX supports up to 4,000 MAC addresses and uses advanced IEEE 802.3 Fast Ethernet 10/100BaseTX switching technology to eliminate network collisions and increase network determinism. A high-speed processor and backplane provide outstanding throughput performance.

Additional information

Manufacturer

Red Lion Controls
