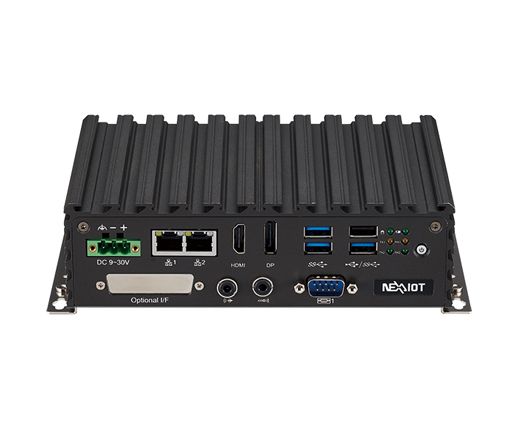

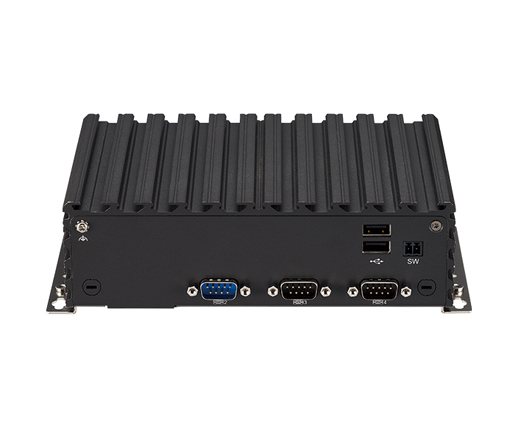

Nexcom NISE 109-E01/E02 Fanless Embedded Computer

Main Features:

  • Onboard Intel® Celeron® processor J6412 2.0Ghz or Atom® processor x6211E 1.3Ghz
  • Dual display port: 1 x HDMI & 1 x DP
  • 2 x Intel® I210-IT GbE LAN ports; support WoL, teaming, PXE and Ethercat
  • 3 x USB 3.0 & 3 x USB 2.0
  • 2 x RS232 & 2 x RS232/422/485
  • Support 1 x 2.5” SSD & 1 x M.2 Key B storage
  • Support 9~30V DC input; support ATX power mode
  • Operation temperature
    – Intel® Celeron® J6412: -10°C to 60°C
    – Intel Atom® x6211E: -20°C to 70°C
  • Support 1 x M.2 & 1 x mini-PCIe expansion slot
  • Support TPM 2.0


SKU: Nexcom NISE 109-E01/E02 Category:


Nexcom NISE 109-E01/E02 Fanless Embedded Computer

Powered by the latest generation of Intel® Celeron® J6412 Qual Core or Atom® x6211E Dual Core (formerly codenamed “Elkhart Lake”), NISE 109 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. Up to 16G DDR4 memory, NISE 108 have several options on storage devices like M.2 and SSD. The NISE 109 has high integration ability with optional mini-PCIe module , 4 x COM ports (2 x RS232 and 2 x RS232/422/485), which makes it a real intelligent system for various applications such as factory automation applications, network applications (with optional Wi-Fi module and 4G/LTE module) and communication applications (with optional GPIO, RS232/422/485). For more harsh environment, the NISE 109 also provide extended operation temperature SKU from -20°C up to 70°C.

For more information, contact us here
