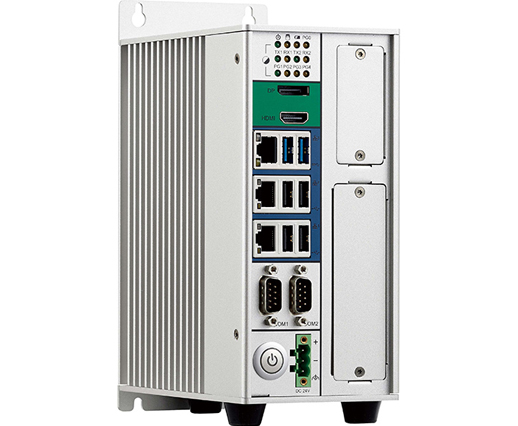

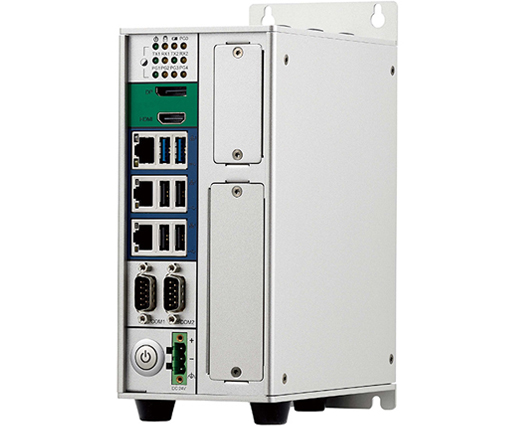

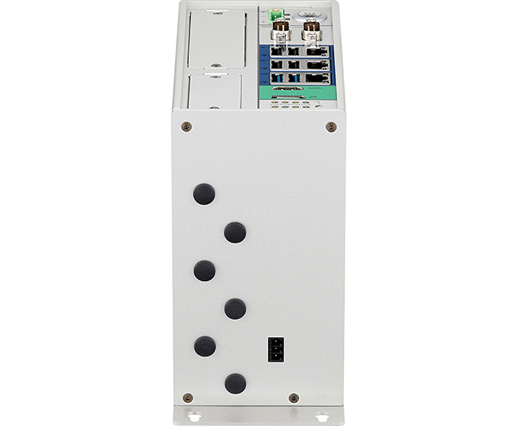

Nexcom NIFE 210-E01 Industrial Computer

Main Features:

  • Onboard Intel® Celeron® processor J6413 Quad Core 1.8GHz
  • 1 x DP++ and 1 x HDMI for dual independent display support
  • 1 x Intel® 2,5GbE LAN port, support WoL & PXE
  • 2 x Marvell PHY GbE LAN ports, support WoL
  • 2 x RS232/422/485 with auto-flow control and 2.5KV isolation protection
  • 2 x USB 3.0, 4 x USB 2.0
  • 1 x Front access 2.5” SATA HDD/SSD tray, support ComboStorage (2.5” SSD + MicroSD card)
  • 2 x mini-PCIe socket support optional modules and mSATA device
  • 1 x M.2 3042/3052 Key B socket
  • TPM 2.0 onboard
  • Support +24VDC input, support ATX power mode


SKU: Nexcom NIFE 210-E01 Category:


Nexcom NIFE 210-E01 Industrial Computer

Powered by Intel® Celeron® processor J6413 (formerly code-named “Elkhart Lake”), the NIFE 210 presents an intelligent fanless PC-based controller and IoT gateway for factory automation. The NIFE 210 supports up to 32GB DDR4 memory and has several options on storage devices like mSATA, front-access 2.5” SSD/HDD, and supports ComboStorage (2.5” SSD + MicroSD card) for applications requiring storage redundancy and capacity expansion. The NIFE 210 features all-front I/O for easy installation and maintenance and has high integration ability with three LAN ports, two isolated COM ports, and optional M.2 and mini-PCIe modules, allowing reliable connection with devices in factory automation applications (with optional PROFIBUS, PROFINET, DeviceNET, EtherCAT, EtherNet/IP, CANopen, SERCOSIII master module), IoT applications (with optional Wi-Fi, 5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485), and features onboard TPM 2.0 for enhanced security. The NIFE 210 is designed for industrial environments and is compliant with EN61000-6-2, and EN61000-6-4 to ensure the reliability and safety of industrial equipment and systems, support DIN-rail mounting, 24V DC power input with +/-20% range and reverse polarity protection, and can be operated in an extended operating temperature range of -10~60 °C, making it ideal for the next generation of M2M intelligent systems, serving as both a factory automation controller and a gateway.


For more information, contact us here
