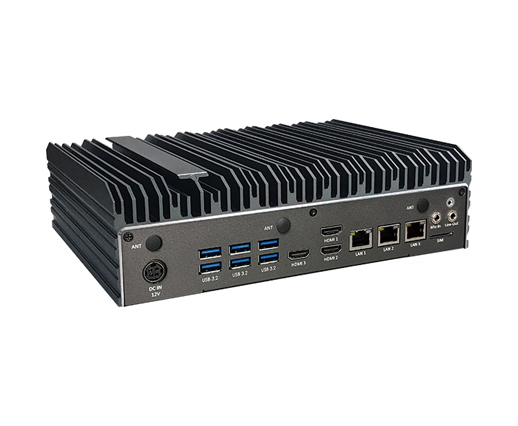

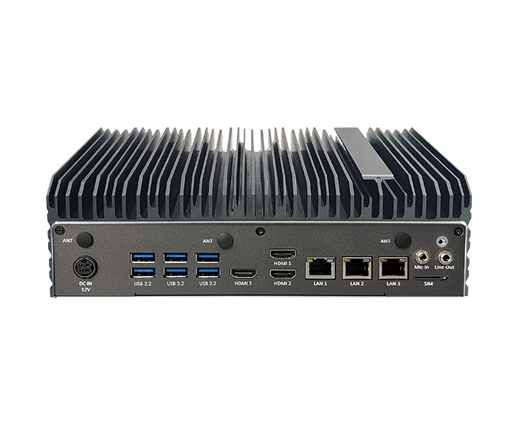

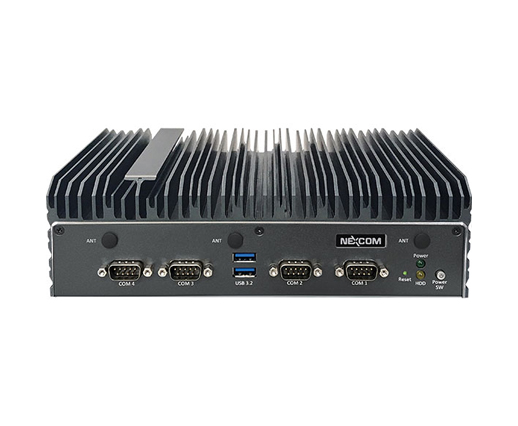

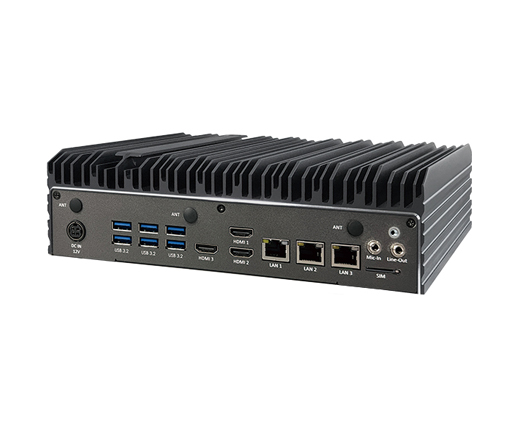

Nexcom NDiS B561 Visual Edge Computer

Main Features:

  • Support 12th Gen Intel® Core™ i9/i7/i5/i3 LGA socket type embedded processor, up to 35W
  • Intel® Q670E
  • Intel® integrated UHD graphic engine driven by Xe architecture
  • Support 3 independent 4K2K@60Hz display output. HDMI 2.1 resolution can be up to 8K@60Hz
  • 1 x HDMI 2.1, 2 x HDMI 2.0, 8 x USB 3.2, 4 x COM, 1 x GbE LAN, 2 x 2.5G GbE LAN (PoE for B561-PoE)
  • Support M.2 Key B/E/M
  • Support extended temperature -20~60°C (B561 only)
  • Fanless design

Downloads

SKU: Nexcom NDiS B560-1 Category:

Description

Nexcom NDiS B561 Visual Edge Computer

Powered by the 12th Gen Intel® Core™ processor series and Intel® 600 series chipset integrated graphics controller, the Nexcom NDiS B561 fanless visual edge computer can handle powerful multimedia content. It can be operated in an extended operating temperature range between -20 to 60°C. Moreover, to fully satisfy customers’ expectations, there are three 4K2K independent display outputs or up to 8K@60Hz in one display output and rich connectives including 8 x USB 3.2, 3 x LAN ports (including 2 x PoE ports), Wi-Fi 6E and 4G, 5G support. The NDiS B561 can be used for both in-door and out-door applications such as visual edge computing, public transportation, security surveillance, outdoor bus station, and even smart stadium.

For more information, contact us here

Additional information

Manufacturer

Nexcom
