10.4″ Advantech PPC-3100S Fanless Panel PC

Main Features

  • Industrial 10.4″ TFT SVGA LED panel with 30k (min.) lifetime backlight
  • Durable 5-wire Resistive Touch Screen
  • System memory up to 8 GB DDR3L SDRAM onboard
  • Embedded Intel processor, quad core Celeron® N2930 1.83GHz onboard
  • Compact Fanless Design with solid AI Alloy enclosure
  • True-flat with IP65 certified front panel protection
  • E-Eye Monitoring and Protection
  • Supports Full-size Mini PCIe Expansion
  • Supports USB 3.0
  • Supports Windows Embedded and Android
  • Supports VESA 75


SKU: Advantech PPC-3100S Category:

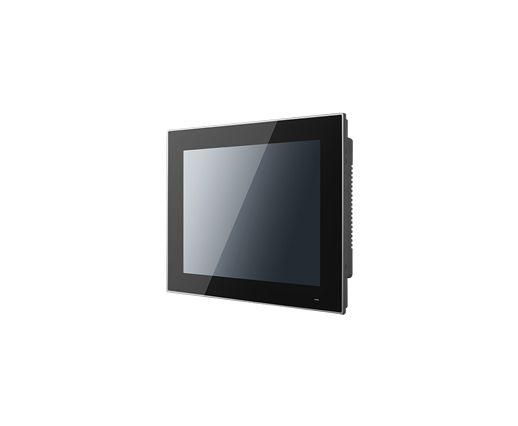

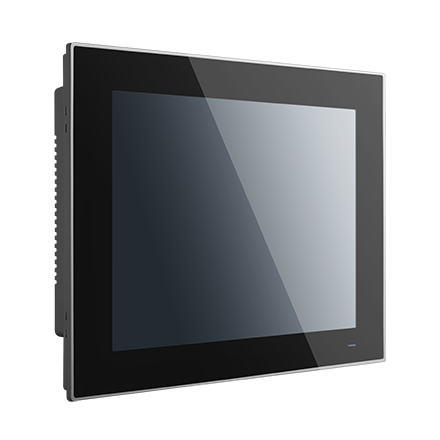

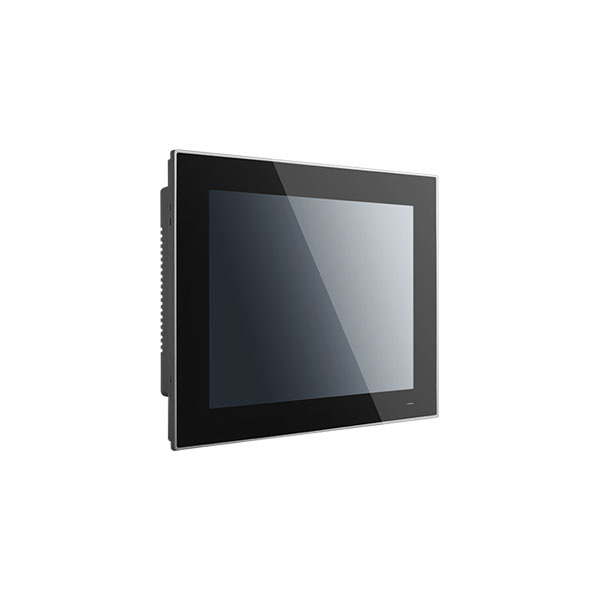

Advantech PPC-3100S 10.4″ Fanless Panel PC with Intel® Celeron® N2930 Processor

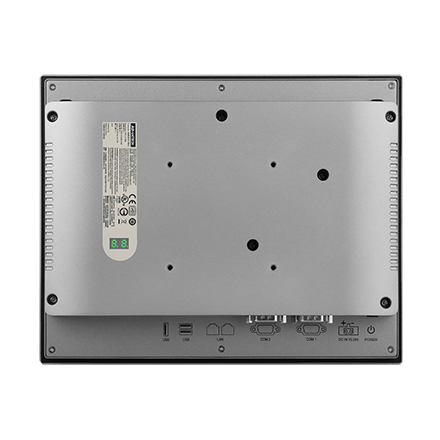

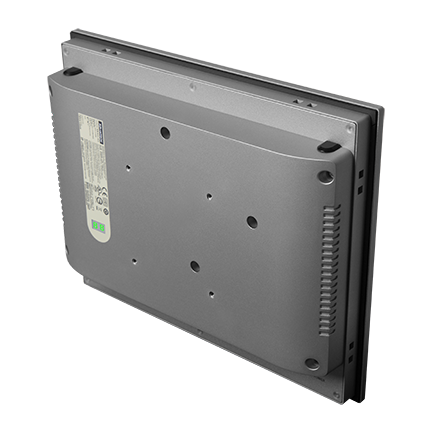

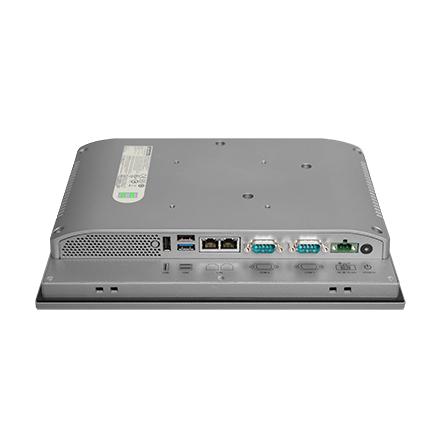

The Advantech PPC-3100S high value ultraslim Panel PC with a 10.4″ SVGA LCD, low power Intel® Celeron® N2930 1.86GHz Processor provides high computing performance in compact fanless embedded system. With a high durability design,the PPC-3100S is equipped with a true-flat touch screen with IP65 front panel protection,die-cast AI Alloy enclosure and 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LAN to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in PPC-3100S rear cover gives a clear signal of system operating status, helping people detecting and analysis.

Other screen sizes include: 6.5″10.4″12.1″15.6″, 18.5″ and 21.5”.
