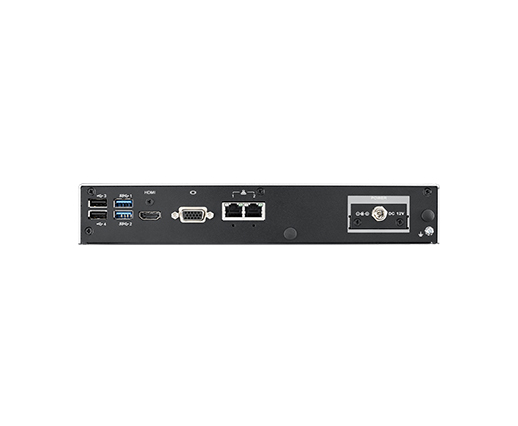

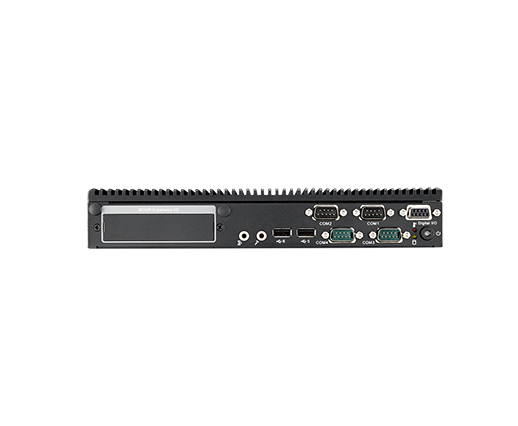

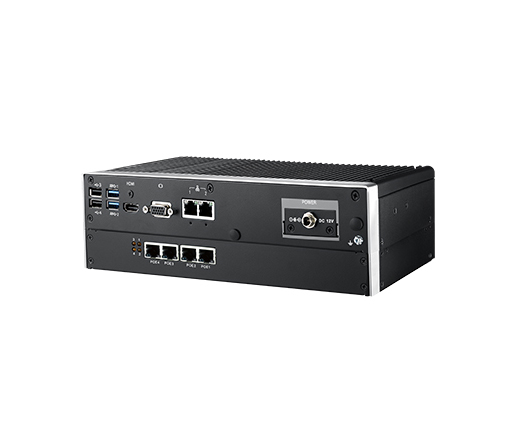

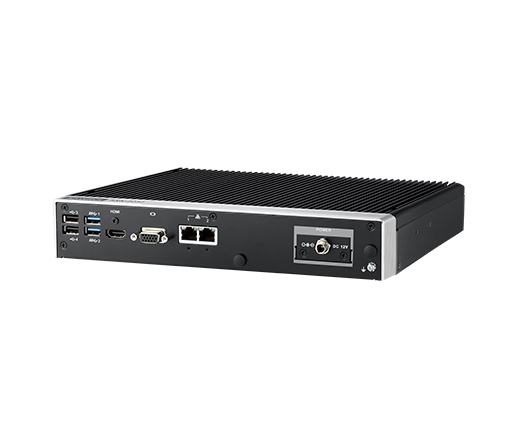

Advantech ARK-2232L Fanless Embedded PC

Main Features:

  • Intel Atom E3940 Quad Core Soc
  • Dual independent displays with one 4K HDMI and one VGA
  • 12V lockable DC jack power input
  • 9-36V power module compatible with all-in-one ordering
  • -20 ~ 60 °C extend temperature operating
  • Mini PCIe expansion with SIM holder for communication module
  • M.2 NGFF 2230 E Key for Wifi communication module
  • mSATA and 1 x 2.5″ SATA storage device
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering
  • Advantech MIOe module compatible with all in one ordering (2 Layers)

Download Datasheet

SKU: Advantech ARK-2232L Category:

Description

Advantech ARK-2000 series is an industrial modular embedded computer with rich I/O, intelligent edge computing, high flexibility and easy PCIe expansion capabilities, featuring wide-input power ranges, wide temperature ranges and structural strengthening, which is a perfect match with IoT platforms and scalable gateways.

Advantech ARK-2232L is an Intel® Atom® E3940 SoC Modular Fanless Box PC.

Additional information

Manufacturer

Advantech
