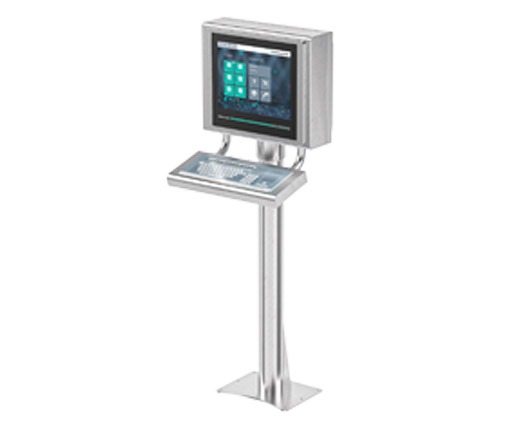

19″ VisuNet GXP Remote Monitor Zone 1/21 RM-GXP1100-19S

Main Features:

  • 19 in (48 cm) display
  • Thin Client solution (with VisuNet RM Shell firmware)
  • Lightweight design
  • Completely modular system for easy field maintainability
  • Flush or bezel mounting options
  • IP66 rating for each individual component and entire system with housing
  • Certified for ATEX and IECEx Zone 1/21
  • UL listed for USA and Canada


SKU: RM-GXP1100-19S Category:


VisuNet GXP Remote Monitor Zone 1/21 RM-GXP1100-19S

The VisuNet GXP Remote Monitor RM-GXP1100-19S from Pepperl + Fuchs is a lightweight modular operator workstation for use in hazardous locations according to ATEX and IECEx Zone 1/21 as well as Class I and II, Divison 2, and Class III. Certification for Class I, Zone 2; Class II, Zone 22; and Class III, Zone 22 is also available.

The VisuNet GXP’s modularity enables fast and simple assembly and replacement of key components in the field. The display unit in two sizes, the computing unit, and the power supply unit are easy to install or to replace. This eases maintenance and enhances the availability of the HMI system and production process.

The system assembly consists of three core components that are field replaceable by the customer.  The display unit (DPU1100-*/DPU1200- *) is a hazardous-location rated display panel with an optional 10 finger multitouch sensor. The display and touch sensor are optically bonded with the hardened front glass.  The thin client unit (TCU1100-*/ TCU1200-*) is a hazardous-location rated computing unit that runs the latest Pepperl+Fuchs RM Shell firmware.  The TCU allows connection to various host systems in the safe area, using standard Ethernet technology. The power supply units (PSU1100-*/ PSU1200-*) are hazardous-location rated power supplies, providing the TCU and DPU devices with 24 V DC power.  As a standard mounting option, a bezel is available that allows the panel to be mounted into the system housing or into a cabinet (requires mounting kit). The panel can also be flush-mounted into a cabinet from the back with additional mounting brackets.#

If you would like more information about the RM-GXP1100-19S, contact us here.
