Uticor PMD 200 Programmable Marquee Display

Main Features:

  • Vacuum Fluorescent Display
  • 2 Lines, 20 Characters Display
  • 11mm Character Height
  • Can be viewed from 20 ft. (6.1 m)
  • Control by PLC (Data I/O)
  • Accommodates display time, date, variable data signals
  • Will display scroll, chain, blink, print, log, & center messages
  • Protection Class Front IP65
SKU: Uticor PMD 200 Programmable Marquee Display Category:

Description

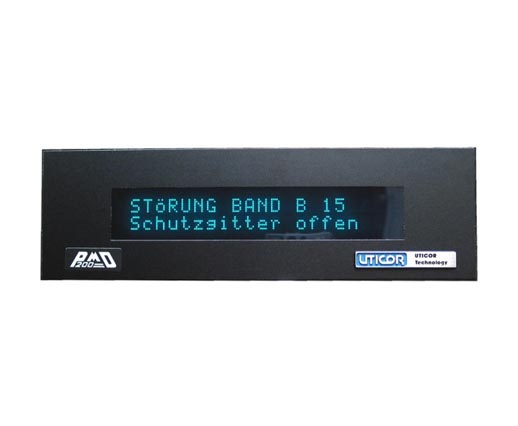

Uticor PMD 200 Programmable Marquee Display

The PMD 200 Master Message Display was designed to give you more display continuity and flexibility than ever before. This unit is an intelligent, alphanumeric display panel, which is user-programmed with individualized messages. Its compact size reduces space previously required for annunciator panels and indicator lights. Unlike annunciator panels, the PMD 200 can be used to provide complete information of machine or process status, operator prompting, and fault indicators.

The PMD 200 Master Message Display comes with 2-line display with 20 vacuum fluorescent characters 0.433″ (11.0 mm) high. Interfacing to this unit is not a problem either. The PMD 200 Master Message Display comes with drivers that enable it to interface directly with over 30 brands and/or models of PLCs.

Messages are programmed into the Master using any ASCII terminal or PC with an RS-232C interface. Message programs can be stored on digital tape and reloaded into one or more message displays at any time. The PMD 200 can be interfaced to a printer, either to print the entire program or to print individual messages as selected.
