Description

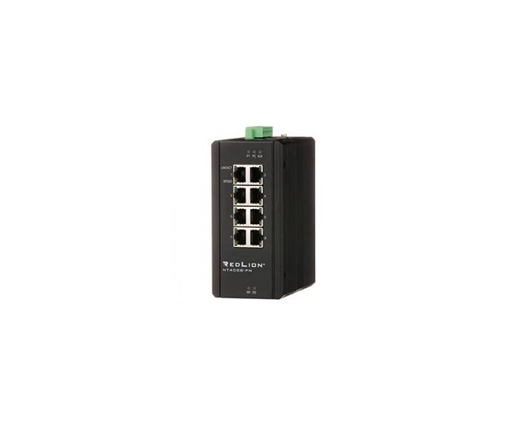

Red Lion NT-4008-000-PN-C 8-Port Gigabit Managed Industrial Ethernet Switch
Red Lion’s NT4008 8-port Gigabit Managed Industrial Ethernet switches are certified to meet PROFINET PNIO v2.34 conformance class B (CC-B), RT Class 1 standards to ensure seamless integration into PROFINET networks using standard PLC configuration and management tools.
MANAGEMENT
- Web Browser Management
- CLI: Console, Telnet
- RMON (Monitors L1 to L2 Traffic)
sFlow - Configuration backup/restore
- PROFINET GSDML file, PROFINET I/O parameters, I/O cyclic data
- MRP Client
- DHCP Server/Client/Relay Agent
- DHCP Snooping
- IGMP v1, v2, v3
- SNMP v1, v2c, v3
DIAGNOSTIC
- Port Mirroring
- Syslog
- LLDP IEEE 802.1ab Link Layer Discovery Protocol
NETWORK REDUNDANCY
- PROFINET MRP
- Ring Protocol: Proprietary Ring & Chain, < 20ms recovery
- IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s, 802.1Q MSTP
- LACP/LAG: Static and Dynamic Link Aggregation
- Up to 4 groups per switch
- Up to 8 ports per group
TRAFFIC MANAGEMENT & QOS
- Priority: IEEE 802.1p QoS
- Number of queues per port: 8
- Policing, scheduling, and shaping
- QoS classification, remarking and translation
- QoS assignment via Control Lists
- WRED congestion management
VLANS
- Max VLANS: 1024
- VLAN types: Port-based VLANs
- IEEE 802.1Q Tag based VLANs
- IEEE 802.1ad double tagging (Q in Q)
SECURITY
- SSH, SSL, HTTPS
- SNMP v3
- Port Security: IP and MAC-based access control
- Storm Control: Multicast/Broadcast/Flooding
- Policy-based access control engine: 128 ACL rules per system
