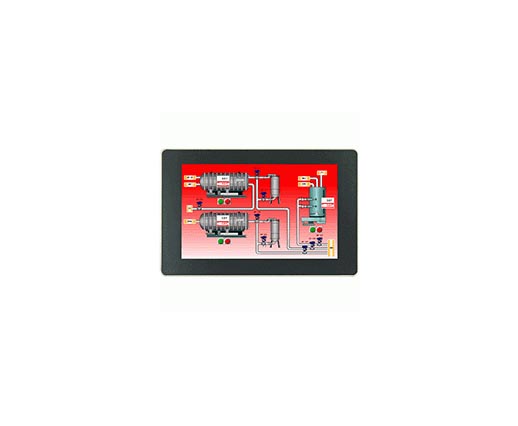

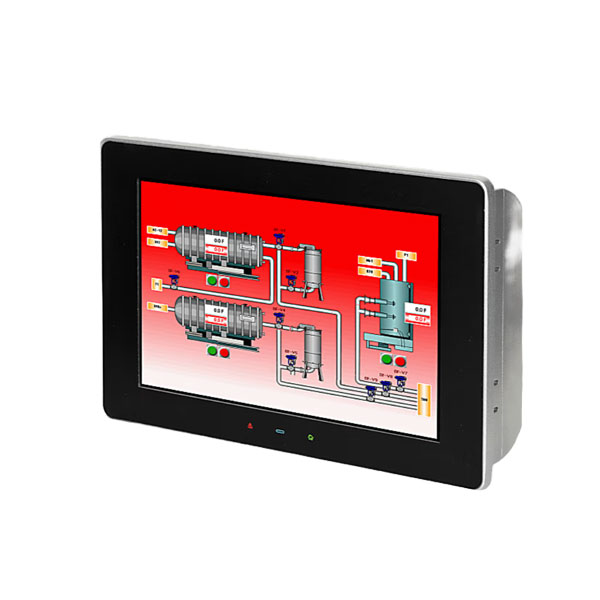

Red Lion G09C1000 9″ Rugged Graphite HMI – Dual Ethernet

Main Features:

  • 9 inch WVGA Color Widescreen touchscreen (800 x 480) Indoor Model
  • Up to 20 Simultaneous Protocol Conversions
  • Two 10/100 Base-TX Ethernet Port
  • Three Fully Isolated Serial Communication Ports, (two RS-232 and one RS-422/485)
  • One USB Type B Port
  • Two High-retention USB Host Ports

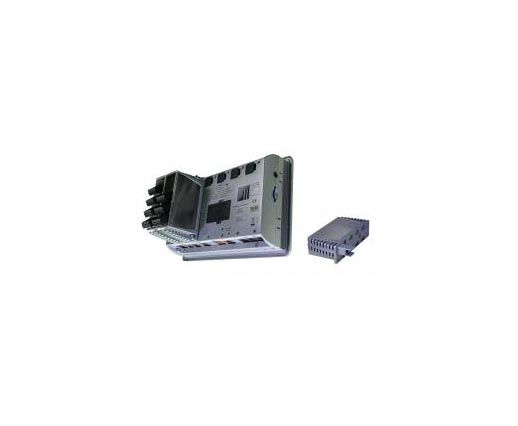

  • 6 Module Slots to Easily add I/O Capability with Plug-in Modules
  • 256 x 164 mm Dimensions
  • OPC UA Client Driver / OPC UA Historical Access
  • Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
  • Store and Forward Buffering for Cloud Connectors

Downloads

SKU: Red Lion G09C1000 Category:

Description

Red Lion G09C1000 9″ Rugged Graphite HMI – Dual Ethernet
SLEEK. RUGGED. FLEXIBLE. RED LION IS THE BEST CHOICE FOR HMI PANELS.

From factories to extreme remote locations, Red Lion’s HMI operator panels enable customers to easily connect, monitor and control processes across a diverse range of industries that include manufacturing, oil and gas and water/wastewater.

Red Lion’s Graphite® operator panels are the industry’s first rugged HMI touchscreens to combine I/O modules with protocol conversion, data logging, web-based monitoring and IEC 61131 control capabilities. Optional expansion racks extend capabilities to enable organisations to connect, monitor and control more industrial processes.

Additional information

Screen Size

9"

Manufacturer

Red Lion Controls
