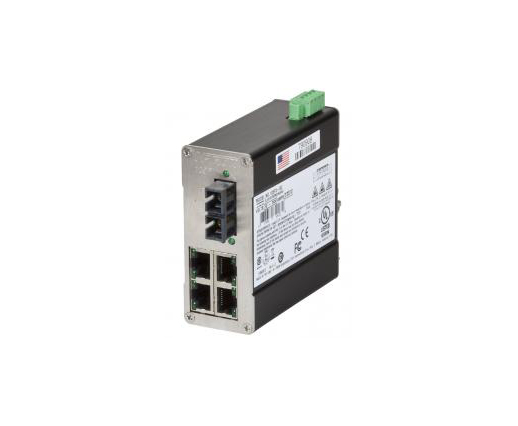

Red Lion 105FX Unmanaged Industrial Ethernet Switch

Main Features:

  • Unmanaged Plug and Play Operation
  • 5 Port Industrial Ethernet Switch
    • Four 10/100BaseTX RJ-45 Ports
    • One 100BaseFX Multimode Fiber Port with SC Connectors
  • Compact Size, Small Footprint
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 70°C Operating Temperature
    • >2M Hours MTBF
  • RJ-45 Ports Support Full/Half Duplex Operation
  • ESD and Surge Protection on all Built-in Ports
  • Auto Sensing Speed and Flow Control
  • Up to 1.0 Gb/s Maximum Throughput
  • Store-and-forward Technology
  • LED Link/Activity Status Indication
  • Redundant Power Inputs (10-30 VDC)
  • Hardened Metal DIN-Rail Enclosure


SKU: Red Lion 105FX Category:


Red Lion 105FX Unmanaged Industrial Ethernet Switch

N-TRON ® 105FX is a low cost, unmanaged five port Industrial Ethernet Switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.  The Red Lion 105FX 105FX Industrial Network Switch is designed to meet the most demanding industrial communications requirements while providing high throughput and minimum downtime.  The 105FX provides four RJ-45 auto sensing 10/100BaseTX ports, plus a fiber based Fast Ethernet uplink port. All TX ports are full/half duplex capable, using “state of the art” Ethernet switching technology.  The 105FX auto-negotiates the speed and flow control capabilities of the four TX port connections, and confi gures itself automatically. The 5th port is a 100BaseFX fiber optic uplink utilizing industry standard ST or SC duplex connectors.

Since the TX ports of the 105FX are auto sensing, there will be no need to make extensive wiring changes if upgrades are made to the host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match specific network environments.  The 105FX supports up to 2,000 MAC addresses, enabling these products to support extremely sophisticated and
complex network architectures.

N-Tron series unmanaged industrial Ethernet switches offer simple plug-and-play functionality with reliable performance. Available in an endless range of port options, our rugged switches are set to tackle the demands of industrial data acquisition, control and Ethernet I/O applications.


Additional information


Red Lion Controls
