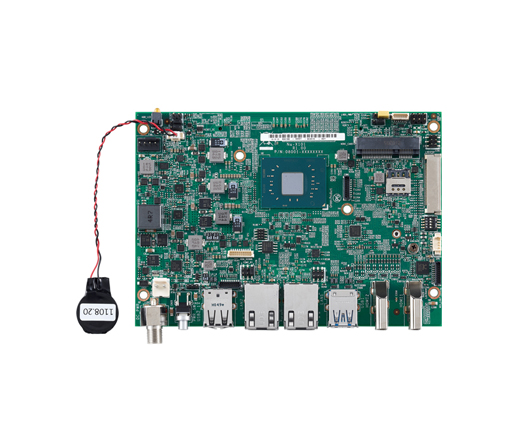

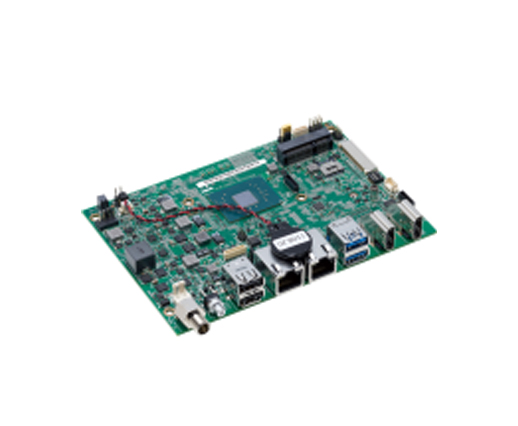

Nexcom X101 3.5” Embedded Board

Main Features

  • Onboard Intel® Celeron® J3455 processor
  • 1 x 204-pin SO-DIMM DDR3L
  • Two display: 2 x HDMI and eDP (optional:LVDS)
  • 1 x M.2 2242 Key M
  • 2 x RJ45 LAN with LED for GbE
  • 2 x USB 3.0, 2 x USB 2.0, speaker-out, Mic-in
  • Serial port: 1 x RS232, 1 x RS232/422/485 port
  • Support AT/ATX mode and 12Vdc/19Vdc input


SKU: Nexcom X101 Category:


Nexcom X101 3.5” Embedded Board

The Nexcom X101 industrial motherboard falls under Nexcom’s 3.5” SBC series which is based on multi-core SoC Intel® Celeron® processor (formerly codenamed “Apollo Lake”). The Nexcom X101 series operates with low power consu mption. This series of 3.5-inch board is aimed at embedded applications. It supports a maximum memory of 8GB DDR3L SDRAM. Also, it offers two display outputs of dual 4K HDMI and eDP or LVDS in order to provide the flexibility of supporting a range of peripherals. The X101 series is ideal for battery-powered portable devices, multimedia HDMI panels, home automation and thin clients.

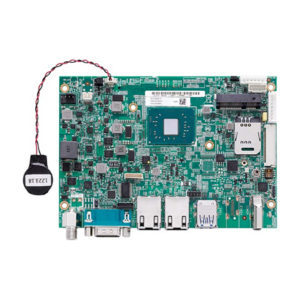

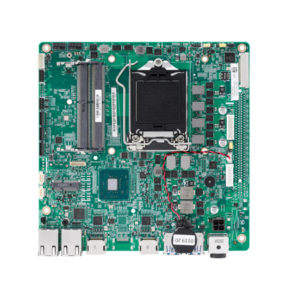

Nexcom’s industrial motherboard range available also includes the Nexcom X100-J3455-P 3.5” Embedded Board and the Nexcom X300 Mini-ITX Board.
