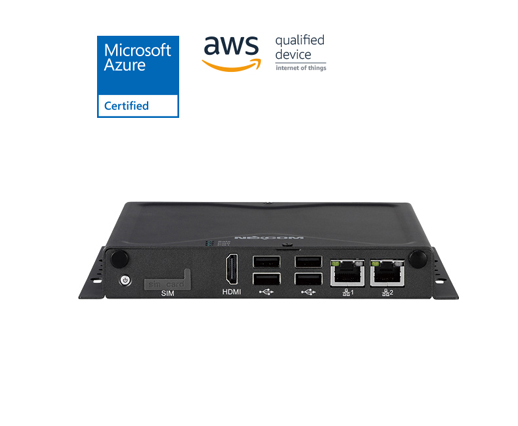

Nexcom NISE 50-J1900 Fanless Computer

Main Features:

  • Onboard Intel® Celeron® processor J1900 quad core, 2.42GHz
  • 1 x HDMI display
  • 2 x Intel® I210AT GbE LAN ports; support WoL, teaming and PXE
  • 4 x USB 2.0
  • 3 x mini-PCIe sockets for optional Wi-Fi/3.5G/LTE modules
  • 2 X RS232, 1 x RS422/485 with auto flow control
  • Support -5~55 degree C operating temperature
  • Support 12V DC input

Downloads

SKU: Nexcom NISE 50-J1900 Categories: ,

Description

Nexcom NISE 50-J1900 Fanless Computer

Powered by the latest generation of Intel® Celeron® processor J1900 (formerly codenamed “Bay Trail”), Nexcom NISE 50 series positions at the intelligent IoT gateway for factory automation and for smart city applications. DDR3L SODIMM memory socket, the NISE 50 series support operating temperature from -5 up to 55 degree C with 12V DC input with +/-20% range. The NISE 50 series have strong connectivity – Ethernet-based LAN port and traditional RS485, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 3x mini-PCIe sockets which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 3.5G and 4G LTE module. NISE 50 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.

We also offer a range of Nexcom Industrial Panel PCs, low-cost Panel PCs and Panel Mount Monitors.

Additional information

Manufacturer

Nexcom
