Nexcom NISE 4300 Fanless Computer

Main Features:

  • Support 6th generation Intel® Core™ i5/i3 BGA type processor
  • Support 1 x 2.5″ SATA HDD
  • 2 x DP, and 1 x LVDS (internal) with independent display support
  • 2 x Intel® GbE LAN ports
  • 1 x M.2 socket and 1 x mini-PCIe socket
  • 2 x USB 3.0, 2 x USB 2.0, 2 x RS232, 1 x RS232/422/485 with auto flow contol
  • Support +24VDC input; ATX power mode
  • Panel PC adaptable

Downloads

SKU: Nexcom NISE 4300 Category:

Description

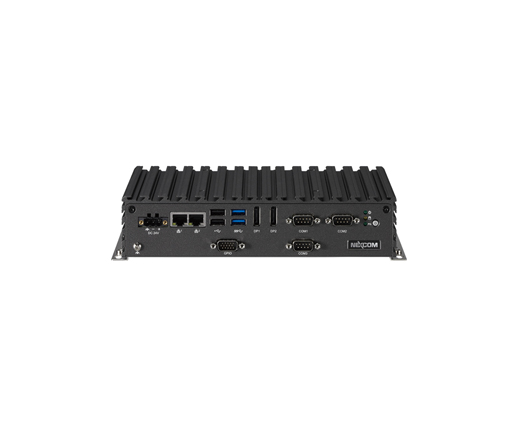

Nexcom NISE 4300 Fanless Computer

Integrated with 6th generation Intel® Core™ i5/i3 processors, Nexcom NISE 4300 is fanless PC designed for industrial applications which demand high CPU and graphics performance and adaptable for panel PC. NISE 4300 supports up to 16G DDR3L memory and have several options on storage devices like M.2, HDD, mSATA or SSD. NISE 4300 supports DC input of 24 VDC,+/-20% range and can be operated in an extended operating temperature range between 0 to 55 Celsius degree. For extended module availability, NISE 4300 also designed one internal mini-PCIe socket to support IoT applications (integrate with optional GbE LAN, Wi-Fi module) and common communication applications (integrate with optional GPIO, RS232/422/485 module).

Core™-i Performance

Featuring high computing power and outstanding graphics capabilities, fanless Core™-i Performance Series models support a variety of external displays. Every Core™-i Performance product offers a superb complement to digital signage, industrial automation, smart machinery, and transportation.

We also offer a range of Nexcom Industrial Panel PCs, low-cost Panel PCs and Panel Mount Monitors.

Additional information

Manufacturer

Nexcom
