Nexcom NISE 3910 Series Fanless Industrial Computer

Main Features:

  • Support 12/13th Gen Intel® Core™ i3/i5/i7/i9 LGA1700 socket type embedded processor
  • Intel® Q670E PCH
  • Support 2 x DDR5 SO-DIMM socket, up to 64GB
  • Four Intel® i226-IT LAN ports, support WoL, teaming, and PXE
  • 1 x DP, 1 x HDMI, and 1 x VGA with independent display
  • 1 x M.2 3042/3052 Key B support LTE/5G module
  • 1 x Outside accessible M.2 2242 Key M with PCIe x4, support NvME
  • 6 x USB 3.2 Gen 1, 4 x USB 2.0
  • 2 x Isolated RS232/422/485 with auto-flow and 2 x RS232
  • 1 x mini-PCIe slot, support optional Wi-Fi, 3.5G, 4G LTE, mSATA
  • 1 x 2.5” SATA HDD/SSD (additional 1 x 2.5” SATA up on request)
  • TPM 2.0 default onboard

Downloads

SKU: Nexcom NISE 3910 Category:

Description

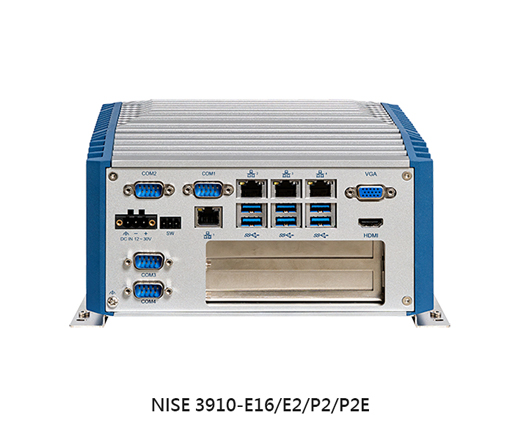

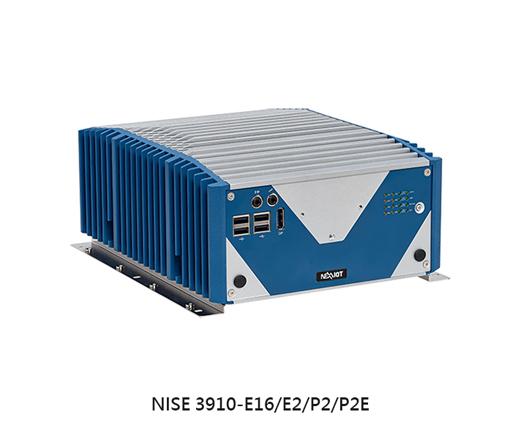

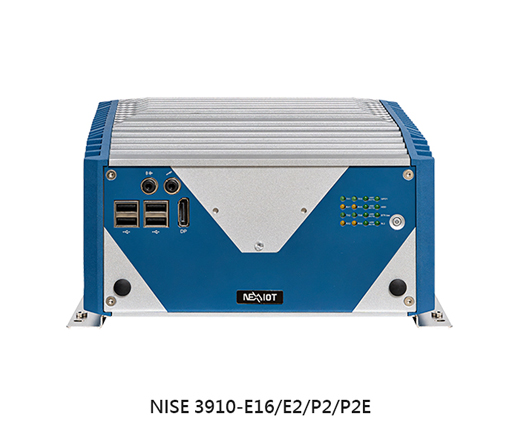

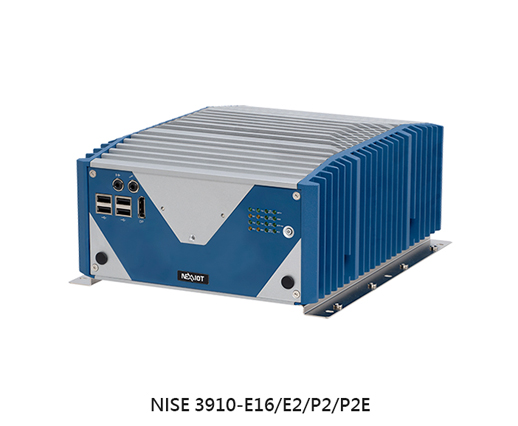

Nexcom NISE 3910 Series Fanless Industrial Computer

Integrated with 12/13th Gen Intel® Core™ i9/i7/i5/i3 processors, NISE 3910 series is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910 series supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD, and mSATA. NISE 3910 series supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended operating temperature range between -20 to 60°C. For extended module availability, NISE 3910 series also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.



For more information, contact us here

Additional information

Manufacturer

Nexcom
