12.1″ Nexcom APPC 1245T Industrial Panel PC

Main Features:

  • 4:3 12.1″ XGA fanless LED panel computer
  • Intel® Celeron® J1900, Quad Co re, low consumption CPU
  • Flush panel by 5-wire touch screen

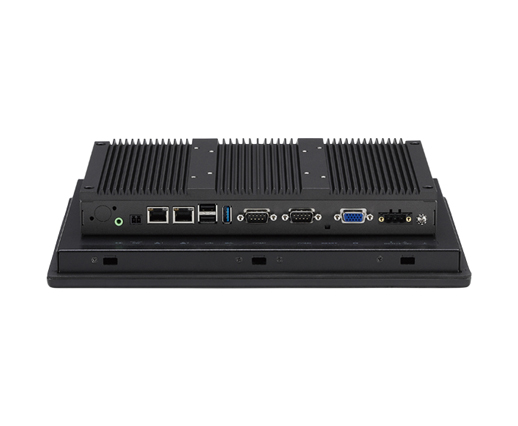

  • Dual GbE/2nd display-VGA/Line-out
  • 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
  • DDR3L 4GB/2.5″ HDD bracket
  • IP65 compliant front panel

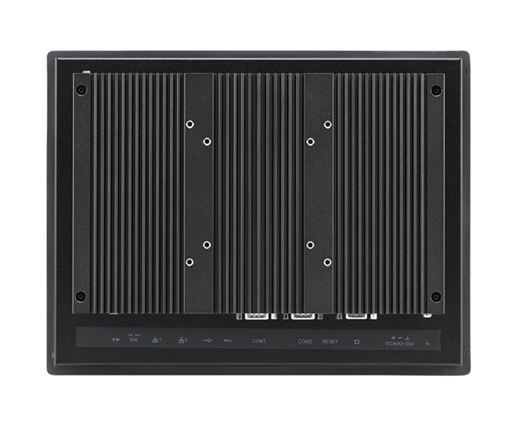

  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • Wide range power input 12V~30VDC



Downloads

SKU: Nexcom APPC 1245T Category:

Description

Nexcom APPC 1245T 12.1″ Industrial Panel PC

The 12.1″ XGA fanless panel PC APPC 1245T incorporating an industrial motherboard is intended for versatile industrial applications. Nexcom APPC 1245T supports 1024 x 768 (XGA) resolution and 500-nit brightness. The front panel which adopts a flush design and complies with IP65 standards makes it the perfect fit in industrial applications.

This APPC series supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM cardholder. With support for the wide power input of 12~30VDC, this APPC series can gain a strong foothold in the industrial fields and machine devices. In addition, this APPC series can hook 2nd display via a VGA port for dual independent display. APPC 1245T has two isolated RS232/422/485 ports.

Other screen sizes in this series include: 8″,15″, 17″ and 19″.  We also have a wide range of high performing Industrial Panel PCs.

Additional information

Manufacturer

Nexcom

Screen Size

12.1"
