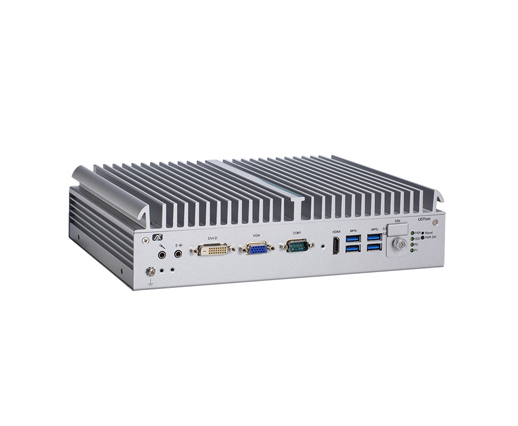

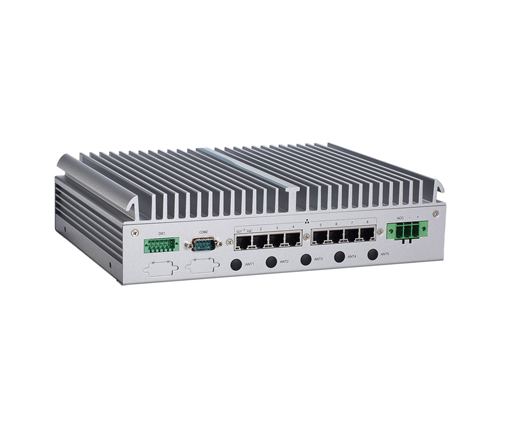

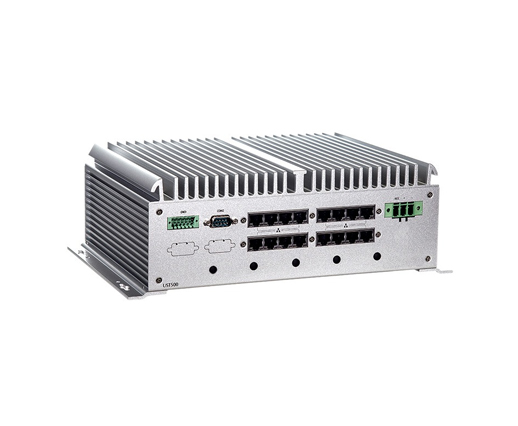

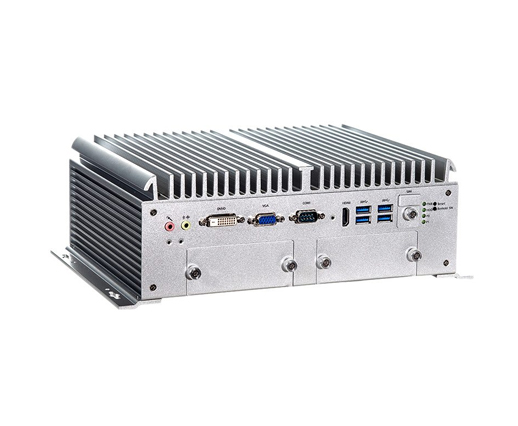

Axiomtek UST500-517-FL Fanless Embedded System for Railway and Vehicle PC

Main Features:

  • CE, FCC, E-Mark, EN 50155 and EN 45545-2 certified
  • LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 65W) with Intel® Q170
  • Fanless and wide operating temperatures from -40°C to +70°C
  • Flexible LAN selection, up to 16 RJ-45 GbE PoE LAN ports
  • Intelligent solution of vehicle power management (Smart Ignition)
  • Two/four swappable 2.5″ SATA drives and one mSATA


SKU: Axiomtek UST500-517-FL Category:


Axiomtek UST500-517-FL Fanless Embedded System for Railway and Vehicle PC

Axiomtek E-Mark Certified Fanless Embedded System with 7th/6th Gen Intel® Core™, Pentium® and Celeron® Processor for Railway and Vehicle PC.

The UST500-517-FL is powered by the LGA1151 socket 7th/6th generation Intel® Core™ and Pentium® processors up to 65W with the Intel® Q170 chipset. The integrated 16 PoE ports are available in RJ-45 or M12 connectors for IP cameras. It provides a full scope of power protection that includes intelligent vehicle power management technology for ACC on/off delay, shutdown delay, and over/under voltage protection. Enhanced by its robust structure and system design, the UST500-517-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration endurance up to 3 Grms. This transportation embedded box is in compliance with ISO 7637-2 and EN 50155 for mobile surveillance applications. There are 16 Gigabit LAN ports which support 802.3at/af Power over Ethernet with a total power budget of 200W. Its DVI-D, HDMI and VGA interfaces support three surveillance monitors. Furthermore, its external accessible SIM card slot enables users to easily change SIM card for different telecommunication service. With wireless LAN modules, this user-friendly transportation embedded system can real-time transmits the video to the control centre. The two built-in or four swappable SATA hard drives are used for mass storage of video files.
