Description

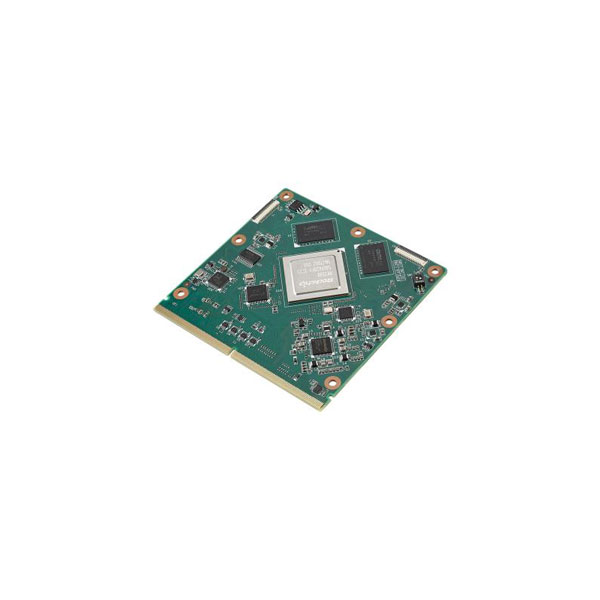

Advantech ROM-6881 Rockchip RK3588 Cortex®-A76 and A55 SMARC 2.1 Full-size Computer-on-Module.
The Advantech ROM-6881 SMARC 2.1 Computer-on-Module is powered by a Rockchip RK3588 SoC which includes Quad Arm Cortex-A76 and Quad Cortex-A55 processors, 6Tops NPU and a high-performance Arm Mali-G610 3D graphics engine. ROM-6881 supports 8K @ 60 fps H.265/VP9 video decoding, and 8K @ 30 fps H.265/H.264 video encoding. It also provides a rich display interface supported with HDMI, DP, eDP, LVDS/MIPI-DSI to meet different display requirements. ROM-6881 offers various high-speed interfaces, including 2 x USB 3.0, 4 x PCIe 3.0, SATA 3.0, Gigabit Ethernet, CAN, and MIPI-CSI . These interfaces can meet a variety of high-rate transmission applications, Wi-Fi 6, and wireless 5G
connectivity targeted at big data and other industrial applications.
The ROM-6881 is paired with the Advantech SOM-DB2510 SMARC2.1 development board for faster end-product peripheral integration and time-to-market. The reference schematics and layout checklist documentation for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities, and reference drivers.
