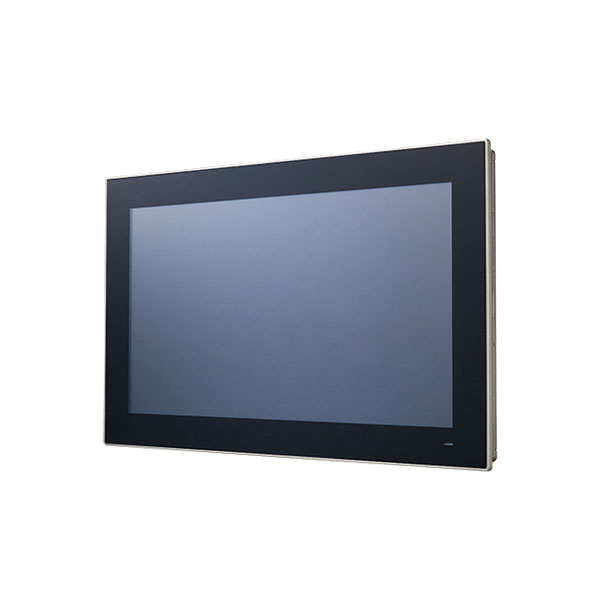

18.5″ Advantech PPC-3180SW Fanless Widescreen Panel PC

Main Features:

  • 18.5″ true-flat TFT LCD with projected capacitive touch control
  • Fanless design with low power consumption
  • Supports 1 x internal 2.5″ SATA HDD and 1 x mSATA
  • Configurable RS-232/422/485 ports via BIOS
  • Automatic data flow control over RS-485
  • Wide range DC support (12 ~ 24 VDC)
  • Supports dual displays
  • IP65-rated front panel


SKU: Advantech PPC-3180SW Category:


Advantech PPC-3180SW 18.5″ Fanless Widescreen Panel PC

The Advantech PPC-3180SW is a high-value, ultra-slim panel PC equipped with a 18.5″ WXGA TFT LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-3180SW features an IP65-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.

Advantech’s industrial Panel PC product portfolio include customizable and all-in-one touchscreen pc series with multiple industrial touch panel sizes and rich I/O expansion to meet industrial standards.

Advantech’s industrial All-in-one fanless Panel PC series feature rich I/O expansion and low-power Intel Atom™ I processor help build complex systems. The Panel PCs support multiple I/O expansion aimed to configure industrial IoT applications.

Other screen sizes include: 6.5″10.4″12.1″15.6″ and 21.5”.
