15.6″ Advantech PPC-3150SW Fanless Widescreen Panel PC

Main Features:

  • 15.6″ true-flat WXGA TFT LCD with projected capacitive touch control
  • Fanless design with low power consumption
  • Supports 1 x internal 2.5″ SATA HDD and 1 x mSATA
  • Configurable RS-232/422/485 ports via BIOS
  • Automatic data flow control over RS-485
  • Wide range DC support (12 ~ 24 VDC)
  • Supports dual displays
  • IP65-rated front panel


SKU: Advantech PPC-3150SW Category:

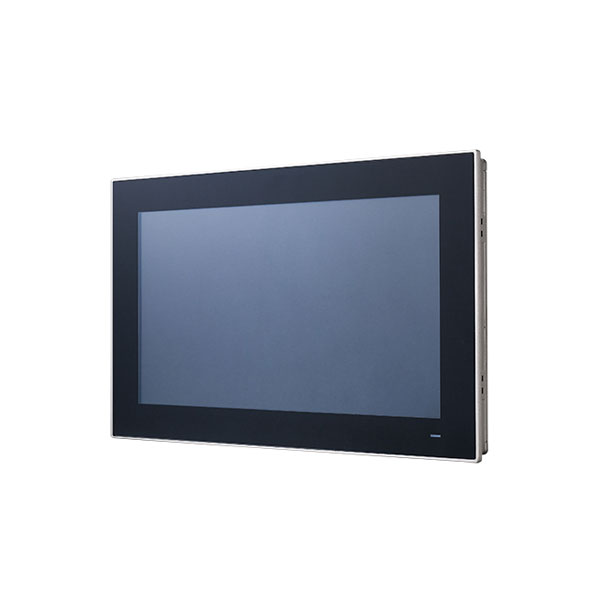

Advantech PPC-3150SW 15.6″ Fanless Widescreen Panel PC

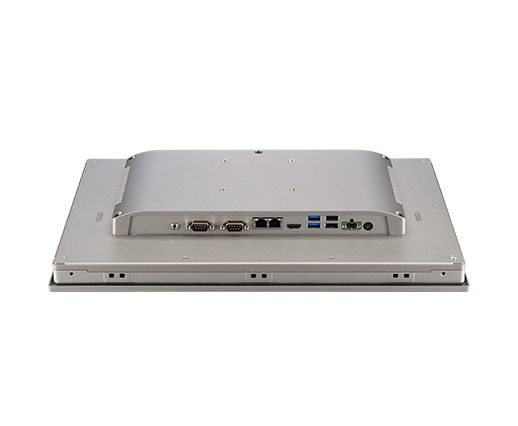

The Advantech PPC-3150SW is a high-value, ultra-slim panel PC equipped with a 15.6″ WXGA TFT LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide highperformance computing in a compact and fanless system. For high durability and functionality, the PPC-3150SW features an IP65-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.

Advantech’s industrial Panel PC product portfolio include customisable and all-in-one touchscreen PC series with multiple industrial touch panel sizes and rich I/O expansion to meet industrial standards.

Advantech’s industrial All-in-one fanless Panel PC series features rich I/O expansion and low-power Intel Atom™ I processor help build complex systems. The Panel PCs support multiple I/O expansion aimed to configure industrial IoT applications.

Other screen sizes include: 6.5″10.4″12.1″15.6″, 18.5″ and 21.5”.
