Advantech IDS-3117

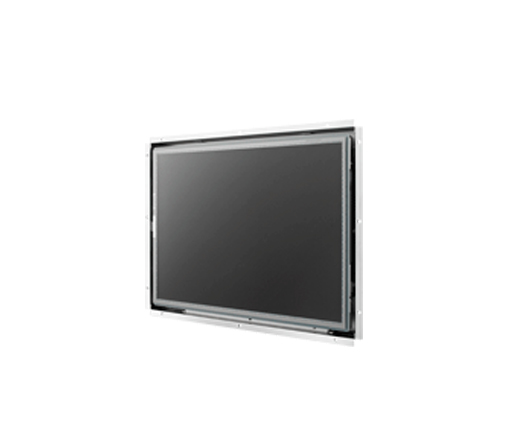

17″ Advantech IDS-3117 Open Frame Monitor

Main Features:

  • 17″ 1280 x 1024 SXGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20°C~+60°C wide operating temperature support
  • 5-wires resistive touchscreen solution
  • Combo touch interface RS-232 and USB
  • Dual signal interface with VGA and DVI (on selected models)
  • Integrated bracket for easy installation
  • Versatile mounting methods for Rear mounting and VESA mounting
  • Anti-Reflective surface treatment for sunlight readable enhancement (optional)
  • Ultra high brightness solution of 1200 nits for outdoor application (optional)

Downloads

SKU: Advantech IDS-3117 Category:

Description

Advantech IDS-3117 17″ Open Frame Monitor

The Advantech IDS-3117 Open Frame Monitor has an ultra-slim design and supports a 17″ 1280 x 1024 pixels TFT LCD screen, with -20 ~ +60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
