Advantech DS-100 4K Digital Signage Player

Main Features:

  • Powered by Dual-core Cortex-A72 & Quad-core Cortex-A53
  • LP-DDR3 2G plus 16G eMMC on board

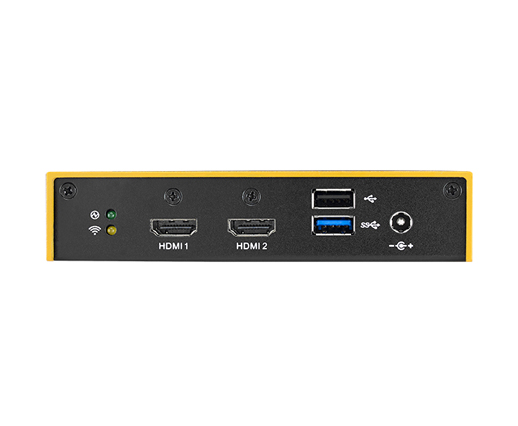

  • Dual independent HDMI outputs(4K 60fps + 1080P)
  • Compact design ideal for space-limited installation
  • Low power, fanless & cable-less design for easy maintenance
  • Expandable via M.2 and micro SD card

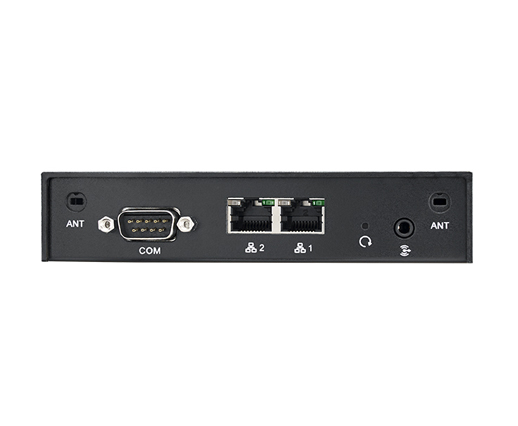

  • Dual LAN & RS-232 for connectivity and manageability
  • Supports Android 7.1 & Linux Debian 9 (Kernel 4.4)
  • Content Management Software built-in


SKU: Advantech DS-100 Category:


Advantech DS-100 is an ultra-compact signage player in the smallest possible palm size for optimized graphics experience. It’s powered by the latest ARM dual-core Cortex-A72 and quad-core Cortex-A53 processor, low power but not giving in to performance. It’s on the cutting edge in terms of the display capability among Android signage players to enable dual independent HDMI outputs, maximum resolution up to UHD 4K 60Hz + FHD 1080P. With dual LAN to enable interconnectivity and RS-232 to enable long-term secure remote manageability,

DS-100 simplifies deployment, maintenance, and management of remote devices. Android 7.1 and Linux Debian 9 are supported, besides, content management software are pre-loaded by option. Design with 4K graphics, as well as connectivity and manageability, DS-100 is your ideal digital signage player for retail, QSR application in the IoT era.
