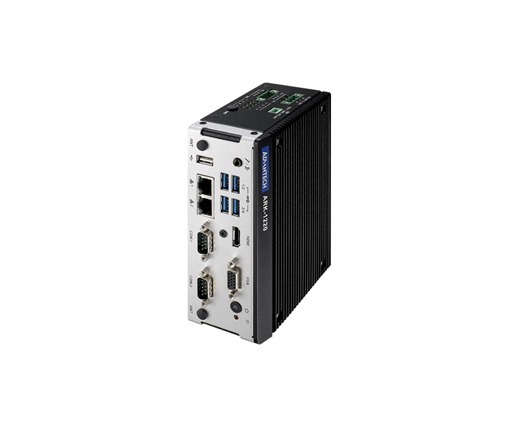

Advantech ARK-1220F DIN-Rail Fanless Box PC

Main Features:

  • Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
  • DIN-Rail system with essential I/O ports on front-side bezel
  • 2 x Intel GbE and 4 x USB 3.0
  • Dual HDMI display up to 4K resolution
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
  • 1 x 2.5” SATA III SSD and 1 x full-size mSATA*
  • 12V ~ 28V wide range power input
  • -30 ~ 70°C extended operating temperature
  • Advantech WISE-PaaS support
SKU: Advantech ARK-1220F Category:

Description

Advantech ARK-1220F DIN-Rail Fanless Box PC

Intel Atom E3940 QC SoC with isolated GbE, COM and DIO ports DIN-Rail Fanless Box PC



Advantech ARK-1220F is a compact DIN-Rail fanless embedded box PC for industrial and/or outdoor environments. The ARK-1220 adopts Intel Atom® E3940 QC processors with front-accessible I/O ports on single bezel—targeting applications such as machine automation, intelligent factories, in-cabinet equipment integration, and IoT gateways. The ARK-1220 comes pre-loaded with Advantech’s new IoT device management App: WISE-PaaS/DeviceOn to enable effective device management. This App includes hardware security certification and parameter settings required by the relevant application domain to help simplify the initial deployment phase and subsequent management.



Intelligent Management and Security Support for Industrial Environments

WISE-PaaS/DeviceOn was the first to adopt the zero–touch technology connection for software and hardware integration, allowing users to monitor real-time health status and send software and firmware updates over-the-air (OTA) on-site. The ARK-1220 utilizes the Trusted Platform Module (TPM) 2.0 function by request and supports BitLocker under Windows 10 IoT for system security. Moreover, McAfee and Acronis are integrated into WISE-PaaS/DeviceOn for anti-virus protection and invaluable data recovery and backup. Our hardware and software solutions help users simplify equipment management via an easy, efficient, and secure systematic method that fits different industrial and outdoor environments.



Ruggedized and Compact DIN-Rail Fanless Design
The ARK-1220 is powered by Intel Atom® E3940 Quad Core SoC, with up to 1.8 GHz with turbo burst on. The dual-channel memory sockets support a maximum of up to 8GB DDR3L 1866 MHz SO-DIMM. Designed for rugged environments, the ARK-1220 supports a -30 ~70°C operating temperature range with 0.7 m/s air flow that is ideal for working outdoors. Its wide-ranging power input of 12V – 28V DC-in is suitable for use in environments with fluctuating or unstable power supply. The ARK-1220 supports an array of functional I/O ports, including 4x USB 3.0, 2x LAN, and 2x COM ports placed on the front panel. Its compact dimensions are appropriate for applications installed in limited space but requiring I/O flexibility and enhanced performance.



Dual 4K Display with Immersive Graphics and Media Performance
The Advantech ARK-1220 offers dual 4K ultra HD independent displays with a resolution of up to 3840 x 2160 pixels at 30 Hz. The Gen9 graphics engine runs on low power while enhancing media processing capability with video encoding and playback performance that offers a 40% improvement compared to the previous generation. The ARK-1220 empowers manufacturers to access clearer analysis and management via panel displays or interactive displays in intelligent factories and machine automation processes. For more information, visit the product page or contact your local sales office.



For more information and pricing, contact us here

Additional information

Manufacturer

Advantech
