Advantech ACP-4020 4U Rackmount Chassis

Main Features:

  • Compact 4U rackmount chassis, with only 348mm depth

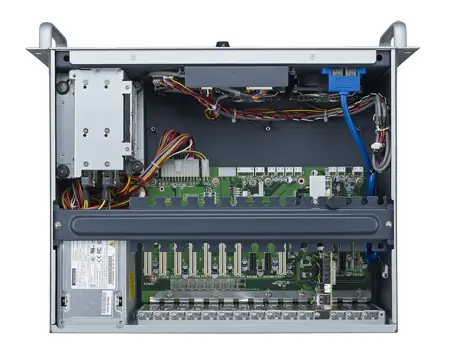

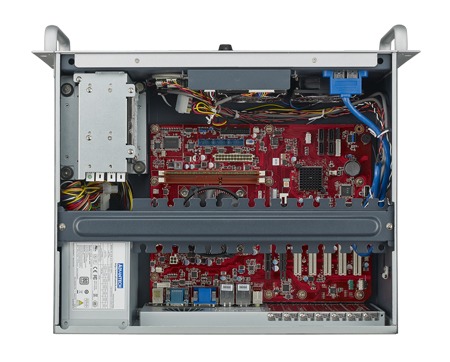

  • Supports 14-slot BP for half-size SBC or ATX/MicroATX motherboard

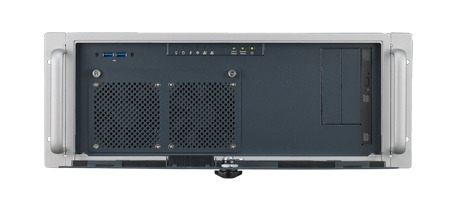

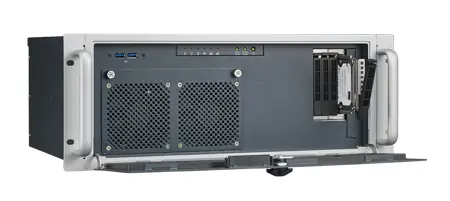

  • Shock-resistant disk drive bay holds one internal 2.5″, and two front-accessible 3.5″ drives, plus one slim optical disk drive. Optionally, the two front-accessible 3.5″ slots may be converted to two or even four 2.5″ mobile SATA HDD trays by using optional part IDT-3120E
  • Supports 80plus single power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and audible alarm notification for system fault detection
  • Smart fan speed control for system fans
  • Remote management (with SUSIAccess 2.1)


SKU: Advantech ACP-4020 Category:


Advantech ACP-4020 4U Rackmount Chassis
Compact 4U Rackmount Chassis for Half-size SBC or ATX/MicroATX Motherboard

Advantech ACP-4020 4U rackmount chassis is a cost-effective computer chassis featuring a complete line of backplanes, power and storage device options. The 4U computer chassis provide the best support for various wallmount and rackmount systems.

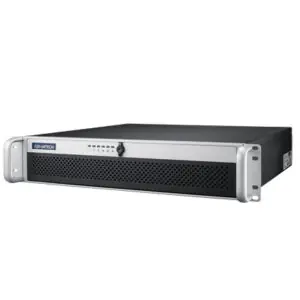

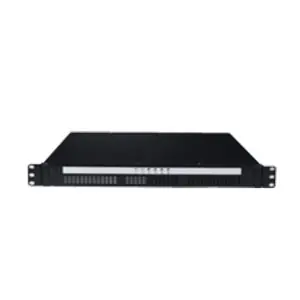

We also provide Advantech’s ACP-1010 1U Chassis and ACP-2020 2U Short Depth Chassis.
