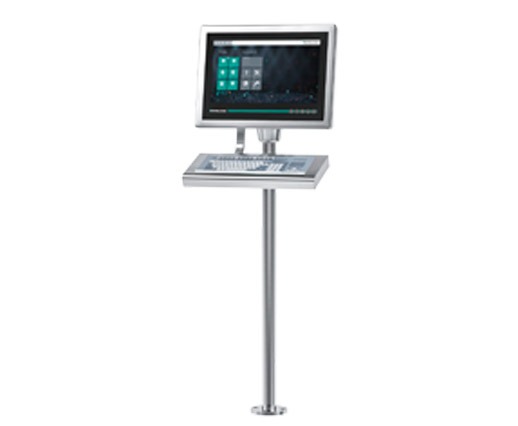

21.5″ VisuNet GXP PC Zone 2/22 PC-GXP1200-22F

Main Features:

  • 21.5″ (54.61 cm) display
  • 16:9 aspect ratio widescreen formatting to match engineering stations
  • PC solution with pre-installed Windows® operating system
  • Lightweight design
  • Full HD Resolution
  • Completely modular system for easy field maintainability
  • Flush or bezel mounting options
  • IP66 rating for each individual component and entire system with housing
  • Certified for ATEX and IECEx Zone 2/22
  • UL listed for USA and Canada


SKU: VisuNet GXP PC Zone 2/22 Category:


21.5″ VisuNet GXP PC Zone 2/22 PC-GXP1200-22F

The VisuNet GXP PC (PC-GXP1100- 22F*/PC-GXP1200-22F*) from Pepperl + Fuchs is a lightweight modular operator workstation for use in hazardous locations according to ATEX and IECEx Zone 1/21 and Zone 2/22 as well as Class I and II, Division 2, and Class III.  The system assembly consists of three core components that are field replaceable by the customer.  The display unit (DPU1100-*/DPU1200- *) is a hazardous-location rated display panel with an optional 10 finger multitouch sensor. The display and touch sensor are optically bonded with the hardened front glass.

The PC unit (PCU1100-*/PCU1200-*) is a hazardous-location rated computing unit that runs a pre-installed Microsoft Windows operating system. The PC unit allows users to install individual software packages such as SCADA applications to visualize and control their automation applications.

The power supply units (PSU1100-*/ PSU1200-*) are hazardous-location-rated power supplies that provide the PCU and DPU devices with 24 V DC power.  As a standard mounting option, a bezel is available that allows the panel to be mounted into the system housing or into a cabinet (requires mounting kit). The panel can also be flush-mounted into a cabinet from the back with additional mounting brackets.
