10.1″ Advantech HIT-W101C Healthcare Information Terminal

Main Features:

  • Freescale iMX6 A9 Quad Core All-in-One computer
  • 10.1″ 16:9 display with P-Cap multi-touch operation
  • 2MP camera for VOIP application
  • High quality integrated microphone with Acoustic Echo Cancellation (AEC)
  • Supports Power-over-Ethernet (PoE)
  • Supports Android & Linux operating systems
  • Available wall mount kit for various embedded applications


SKU: Advantech HIT-W101C Category:


10.1″ Advantech HIT-W101C Healthcare Information Terminal

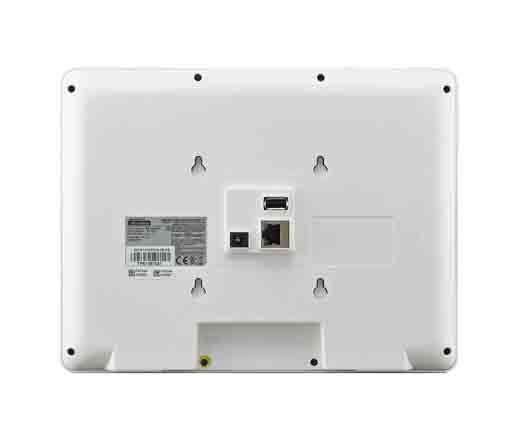

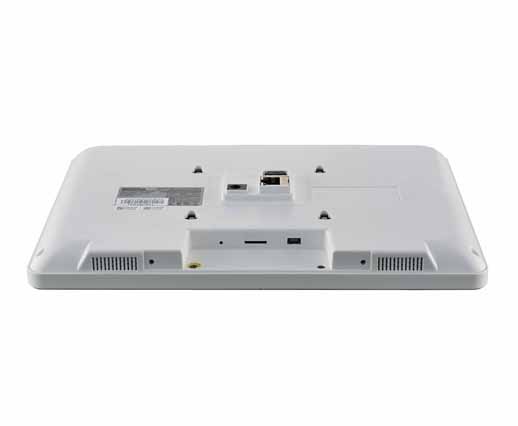

A 10” healthcare information terminal specifically designed for hospital applications. Featuring a Freescale™ i.MX6 A9 quad-core processor, Android 5.1 operating system, and 10.1” 16:9 widescreen multi-touch display with projected capacitive (PCAP) touch control, HIT-W101C offers healthcare providers a cost-effective and highly flexible medical computing device. In addition to a 2-megapixel camera and microphone with acoustic echo cancellation (AEC), HIT-W101C is equipped with rear-access I/O that includes USB, mini USB OTG, RJ12, RJ45 with power-over-Ethernet (PoE) support, and micro SD slots for convenient connectivity and integration. The IP65-rated true flat front panel protects against water and dust ingress and can be easily cleaned to ensure the highest levels of hygiene and infection control are maintained.

Compliant with EN 60950 and EN 60601-1-2 certifications, the HIT-W101C’s lightweight (740 g) and slim (22 mm) design allow it to be easily mounted on walls, counter tops, mobile carts, and bedside swing arms to serve as medical equipment control panels, nurse station terminals, pharmacy information systems, medical cart devices, and patient infotainment terminals. Moreover, to expand the functionalities according to specific usage needs, HIT-W101C terminals can be integrated with a camera, and RFID/NFC/Wi-Fi/Bluetooth modules, as well as a voice-over-IP (VoIP) handset.

Other models in this series include: 7″ Advantech HIT-50715.6″ Advantech HIT-W15B.& 18.5″ Advantech HIT-W183

Additional information



Screen Size
