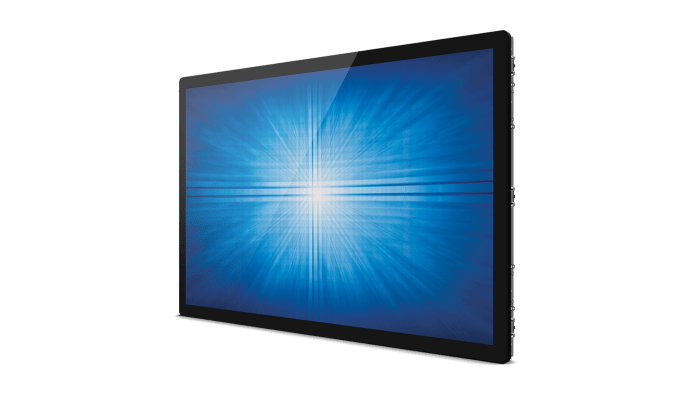

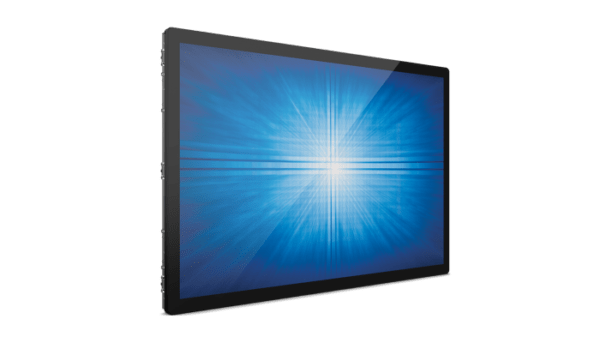

42.5″ Elo 4343L Open Frame Touchscreen

Main Features:

  • 42.5″ LCD Open Frame Touchscreen
  • 1920 x 1080 full HD provides a bright, high contrast display with wide-view angle that easily attracts and holds the user’s attention
  • Available with TouchPro™ PCAP Pro-M advanced mesh solution offering a lighter 12-point multi-touch display
  • Tested with robust UL60950 ball-drop and IK07 impact immunity requirements supporting applications in demanding public access environments



Elo 4343L 42.5″ Open Frame Touchscreen

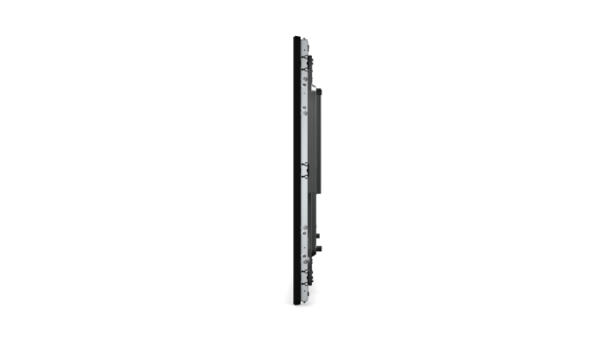

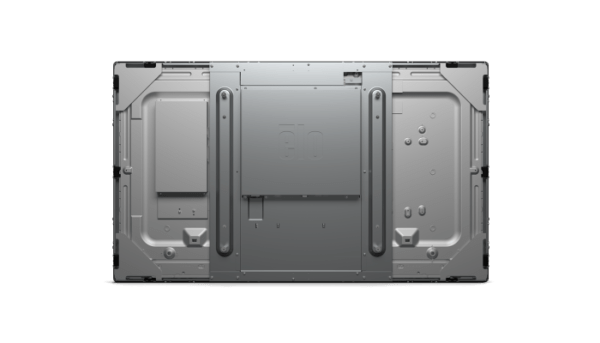

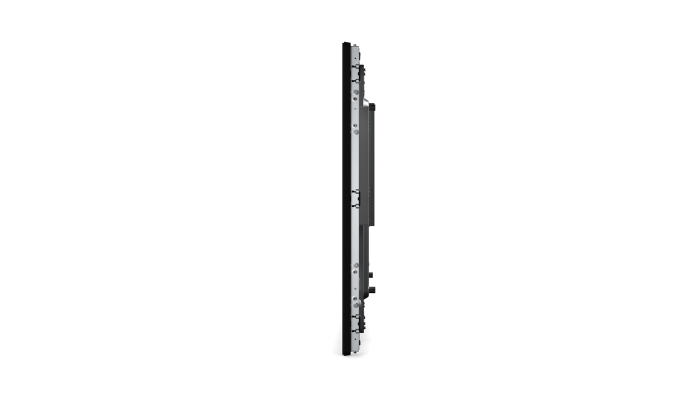

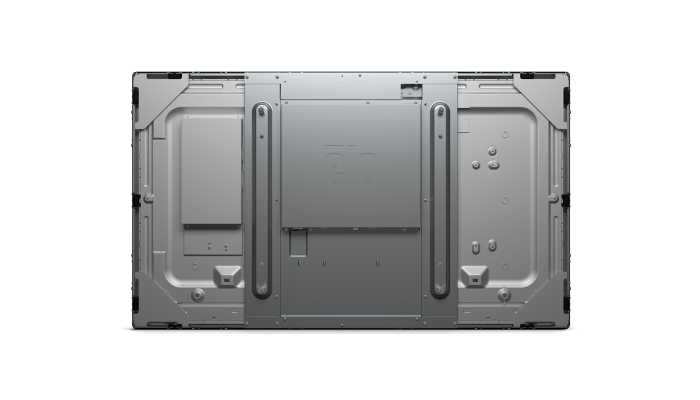

Elo’s 4343L open frame touchscreen delivers a professional-grade large format 42.5-inch full HD display in a sleek and thin 2.6-inch (66 mm) form factor. The 4343L enables a thinner and smaller kiosk design for applications with limited space. The touchscreen glass is built and tested to provide robust impact resistance by exceeding the UL60950 ball-drop and IK06 impact immunity requirements. Energy Star 7.0 certified, the 4343L, with its’ energy efficient LED backlight, is designed for optimal energy conservation reducing power consumption and heat dissipation. The 4343L offers multiple mounting options, sleek edge-to-edge glass architecture and can handle 24/7 operation, making it ideal for public venue self-service kiosks and built-in application installs for retail, hotels, gaming, transportation and other commercial uses.

Easily Integrated
TouchPro® Projected Capacitive (PCAP) units offer clear anti-friction glass that are sealed against dirt and dust to simplify integration into the final enclosure. And with the capability to support touch thru glass (available upon request), the Elo 4343L can be sealed into a solution and obtain an IP65 rating on the front side of the unit. The flush mount kit is included to enable a seamless and elegant front kiosk surface. And, as with all Elo open frame touchscreen displays, we control the design and tooling to help ensure future products will be identical in form, fit and mechanical design whenever possible helping you to minimize costly enclosure changes.

Touch Ready
Designed for touch from the start, the seamless zero-bezel 42.5-inch multi-touch display is available with our latest TouchPro PCAP advanced solution offering a lighter 12-point multi-touch screen specifically designed for large format, high-use applications. The Elo 4343L’s TouchPro PCAP offers fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows® 7, Windows 8 and Windows 10. The 4343L touchscreen provides pure glass construction to deliver a clear, bright and long-lasting touchscreen solution.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. Designed and built by Elo, we use our own touchscreens, software and drivers ensuring everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).

Other Elo Open Frame Screen Sizes
Elo Open Frame Touchscreens also come in sizes: 10.1″ Elo 1093L, 12″ Elo 1291L, 15″ Elo 1590L, 15.6″ Elo 1593L, 17″ Elo 1790L, 19″ Elo 1990L, 19.5″ Elo 2094L, 32″ Elo 3243L, 42″ Elo 4243Land 56.6″ Elo 5543L.

Add Android Computing
Compatible with Elo Backpack with Android Open Source.
