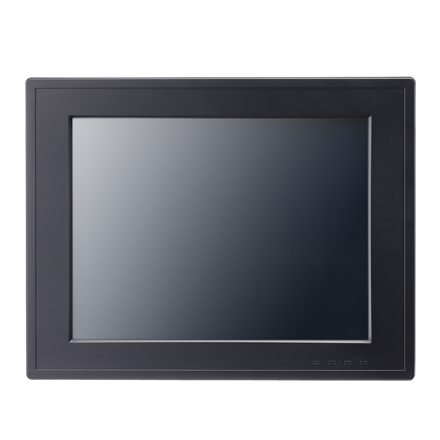

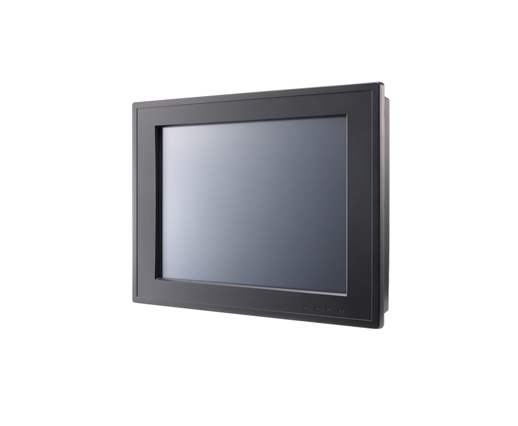

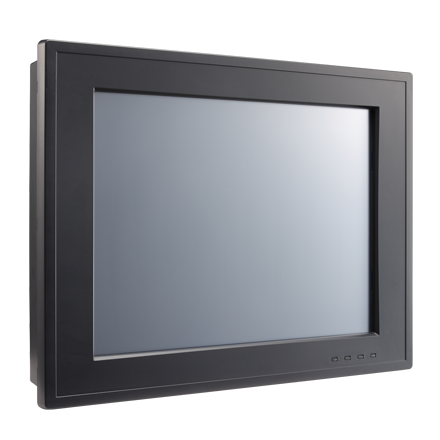

12.1″ Advantech PPC-3120-RAE Fanless Panel PC

Main Features:

  • 12.1″ TFT XGA LED Panel with resistive touchscreen
  • Embedded Intel® Atom™ processor D2550 1.86 GHz
  • System memory up to 4 GB DDR3 1066 SDRAM
  • Supports one internal SATA 2.5″ HDD and 1 x mSATA socket
  • Optional PCI/PCIe x1 expansion kit
  • Fanless design and low power consumption
  • Automatic data flow control over RS-485
  • Adjust RS-232/422/485 through BIOS
  • COM1/COM2 pin9 RI/5V/12V adjustable through BIOS


SKU: Advantech PPC-3120-RAE Category:


12.1″ Advantech PPC-3120-RAE Fanless Panel PC

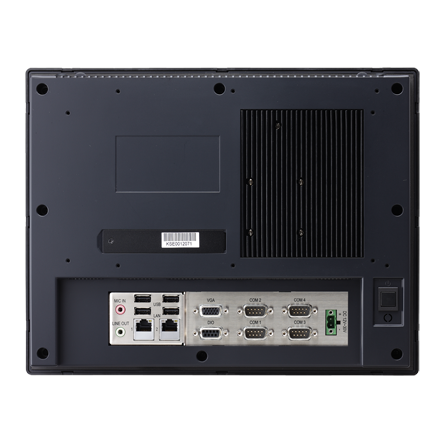

Advantech PPC-3120-RAE is a new 12.1″ Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3120 more reliable in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.

Advantech’s all-in-one fanless Panel PC series features rich I/O expansion and low-power Intel Atom™ I processors to help build complex systems. The Panel PCs support multiple I/O expansion aimed to configure industrial IoT applications.

Other screen sizes include: 6.5″10.4″, 15.6″, 18.5″ and 21.5”.
